74HCT27PW Datasheet, Gate, nexperia

74HCT27PW Features

• Gate
• Wide supply voltage range from 2.0 V to 6.0 V
• CMOS low power dissipation
• High noise immunity
• Latch-up performance exceeds 100 mA per JESD 78 Clas

PDF File Details

Part number:

74HCT27PW

Manufacturer:

nexperia ↗

File Size:

237.12kb

Download:

📄 Datasheet

Description:

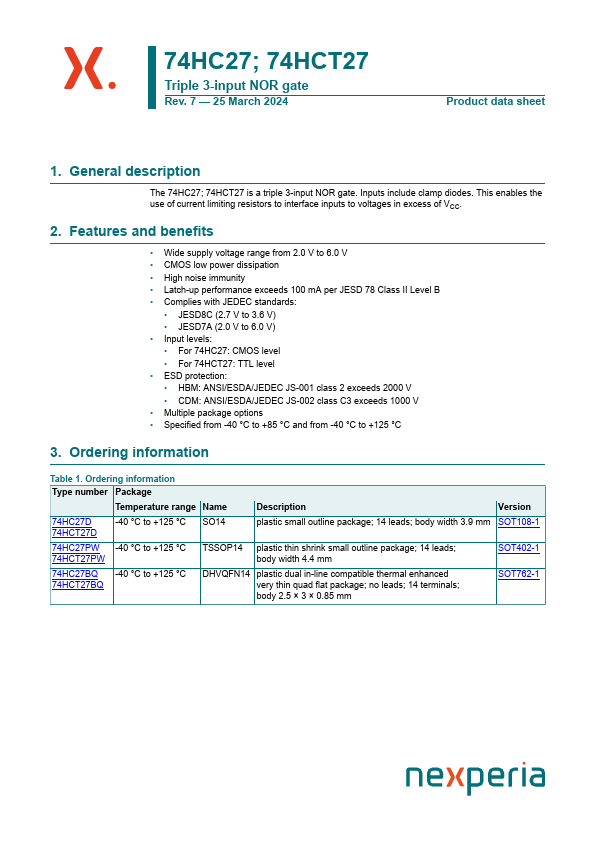

Triple 3-input nor gate. The 74HC27; 74HCT27 is a triple 3-input NOR gate. Inputs include clamp diodes. This enables the use of current limiting resistors to
