74LVCH16244A, 74LVC16244A - 16-bit buffer/line driver

nexperia

📥 Download Datasheet

74LVCH16244A Datasheet Preview — This datasheet PDF includes multiple part numbers: 74LVCH16244A, 74LVC16244A. Please refer to the document for exact specifications by model.

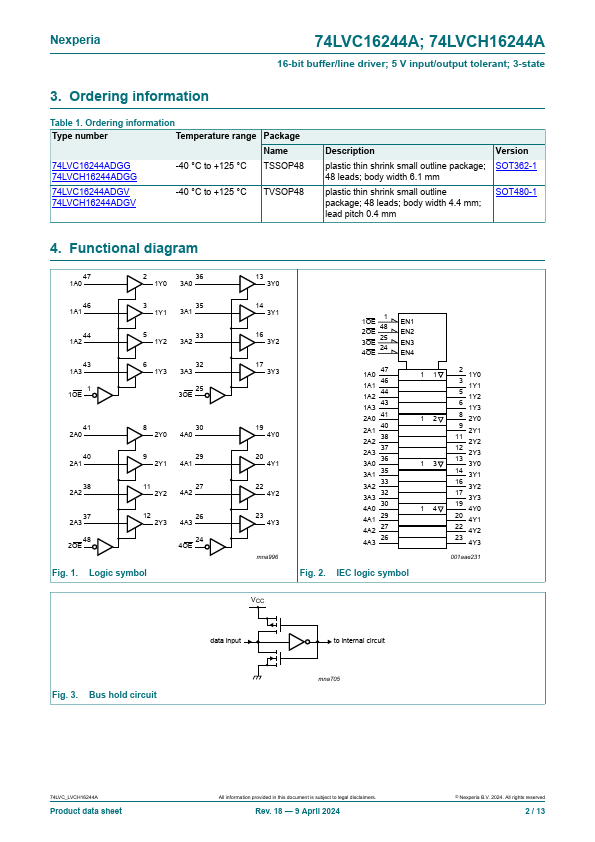

datasheet Preview Page 2

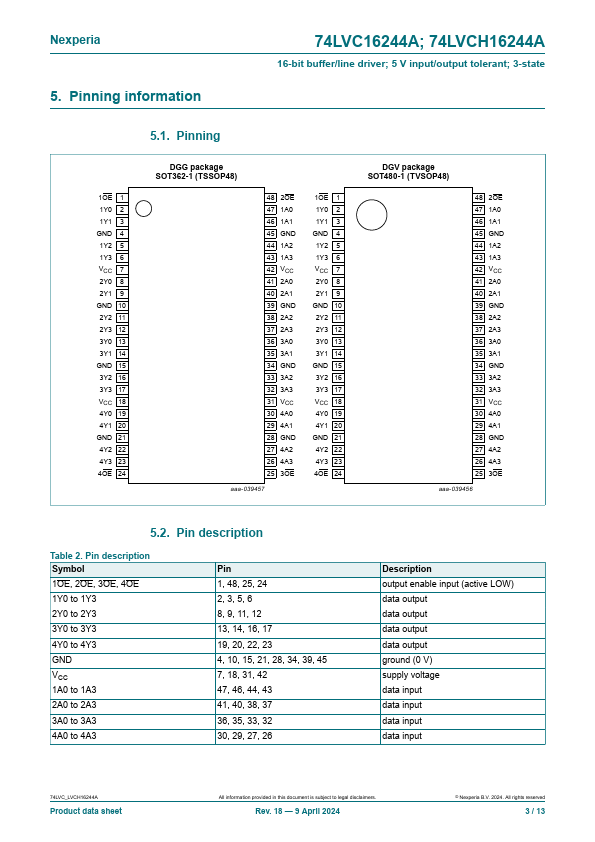

datasheet Preview Page 3

Datasheet Details

Part number	74LVCH16244A, 74LVC16244A
Manufacturer	nexperia ↗
File Size	256.27 KB
Description	16-bit buffer/line driver
Datasheet	74LVC16244A-nexperia.pdf
Note	This datasheet PDF includes multiple part numbers: 74LVCH16244A, 74LVC16244A. Please refer to the document for exact specifications by model.

74LVCH16244A Product details

Description

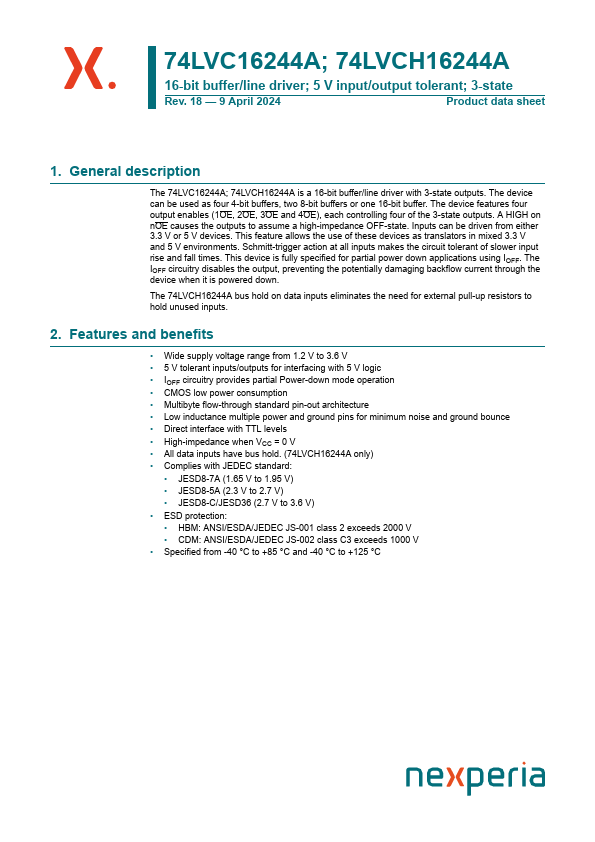

The 74LVC16244A; 74LVCH16244A is a 16-bit buffer/line driver with 3-state outputs.

Features

Wide supply voltage range from 1.2 V to 3.6 V.
5 V tolerant inputs/outputs for interfacing with 5 V logic.
IOFF circuitry provides partial Power-down mode operation.
CMOS low power consumption.
Multibyte flow-through standard pin-out architecture.
Low inductance multiple power and ground pins for minimum noise and ground bounce.
Direct interface with TTL levels.
High-impedance when VCC = 0 V.
All data inputs have b.
