74LVTH16244B - 16-bit buffer/driver

This page provides the datasheet information for the 74LVTH16244B, a member of the 74LVT16244B 16-bit buffer/driver family.

Datasheet Summary

Description

The 74LVT16244B; 74LVTH16244B is a 16-bit buffer/line driver with 3-state outputs.

The device can be used as four 4-bit buffers, two 8-bit buffers or one 16-bit buffer.

Features

  • 16-bit bus interface.
  • 3-state buffers.
  • Wide supply voltage range from 2.7 to 3.6 V.
  • Overvoltage tolerant inputs to 5.5 V.
  • BiCMOS high speed and output drive.
  • Output capability: +64 mA and -32 mA.
  • Direct interface with TTL levels.
  • Bus hold data inputs eliminate need for external pull-up resistors to hold unused inputs.
  • Power-up 3-state.
  • Live insertion and extraction permitted.
  • No bus current loadin.

📥 Download Datasheet

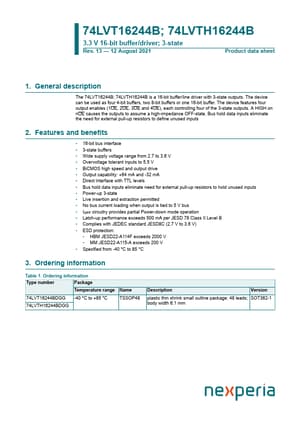

Datasheet preview – 74LVTH16244B

Datasheet Details

Part number 74LVTH16244B
Manufacturer nexperia
File Size 213.36 KB
Description 16-bit buffer/driver
Datasheet download datasheet 74LVTH16244B Datasheet
Additional preview pages of the 74LVTH16244B datasheet.

📁 Similar Datasheet

  • 74LVTH16244 - Low Voltage16-Bit Buffer/Line Driver (Fairchild Semiconductor)
  • 74LVTH16244 - LOW VOLTAGE BICMOS 16 BIT BUS BUFFER (STMicroelectronics)
  • 74LVTH16240 - Low Voltage 16-Bit Inverting Buffer/Line Driver (Fairchild Semiconductor)
  • 74LVTH16245 - Low Voltage 16-Bit Transceiver (Fairchild Semiconductor)
  • 74LVTH16245B - 3.3V 16-bit transceiver (NXP Semiconductors)
  • 74LVTH162240 - Low Voltage 16-Bit Inverting Buffer/Line Driver (Fairchild Semiconductor)
  • 74LVTH162244 - Low Voltage 16-Bit Buffer/Line Driver (Fairchild Semiconductor)
  • 74LVTH162245 - Low Voltage 16-Bit Transceiver (Fairchild Semiconductor)
  • 74LVTH162373 - Low Voltage 16-Bit Transparent Latch (Fairchild Semiconductor)
  • 74LVTH162374 - Low Voltage 16-Bit D-Type Flip-Flop (Fairchild Semiconductor)
Other Datasheets by nexperia

Full PDF Text Transcription

Click to expand full text
74LVT16244B; 74LVTH16244B 3.3 V 16-bit buffer/driver; 3-state Rev. 13 — 12 August 2021 Product data sheet 1. General description The 74LVT16244B; 74LVTH16244B is a 16-bit buffer/line driver with 3-state outputs. The device can be used as four 4-bit buffers, two 8-bit buffers or one 16-bit buffer. The device features four output enables (1OE, 2OE, 3OE and 4OE), each controlling four of the 3-state outputs. A HIGH on nOE causes the outputs to assume a high-impedance OFF-state. Bus hold data inputs eliminate the need for external pull-up resistors to define unused inputs 2. Features and benefits • 16-bit bus interface • 3-state buffers • Wide supply voltage range from 2.7 to 3.6 V • Overvoltage tolerant inputs to 5.
