BAS21TH - High-voltage switching diode

Product Overview

nexperia

📥 Download Datasheet

BAS21TH High-voltage switching diode by nexperia - Datasheet Preview — Datasheet preview – BAS21TH

Datasheet Details

Part number	BAS21TH
Manufacturer	nexperia
File Size	301.86 KB
Description	High-voltage switching diode
Datasheet	BAS21TH Datasheet

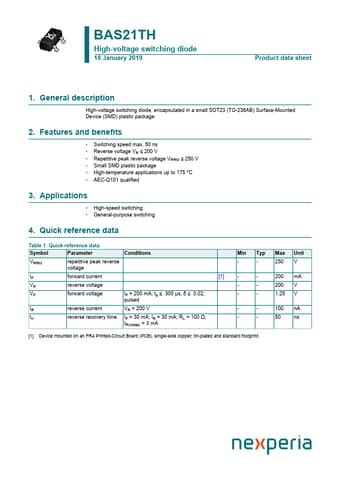

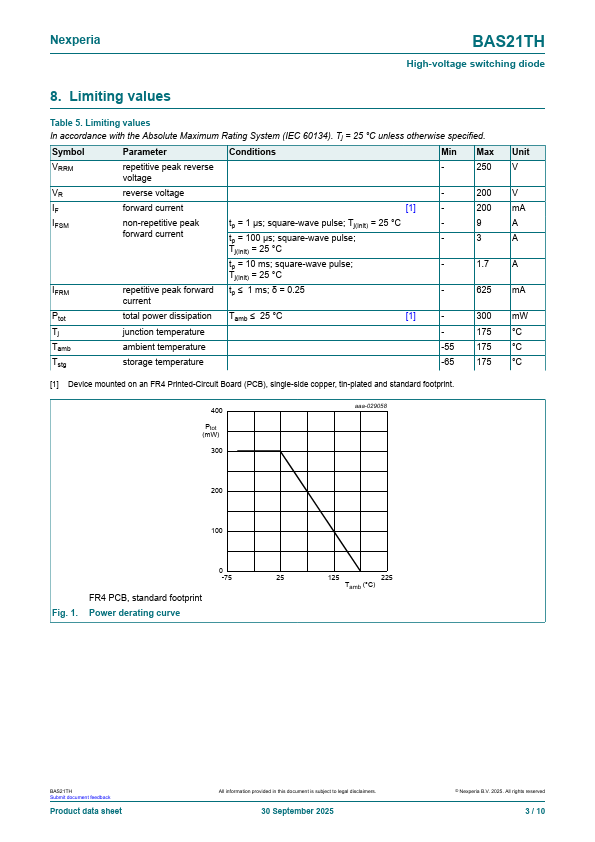

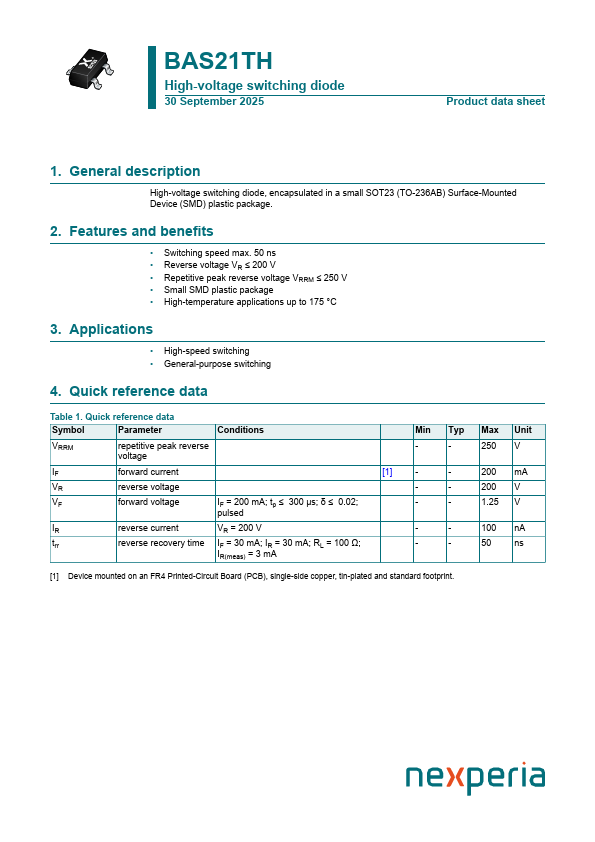

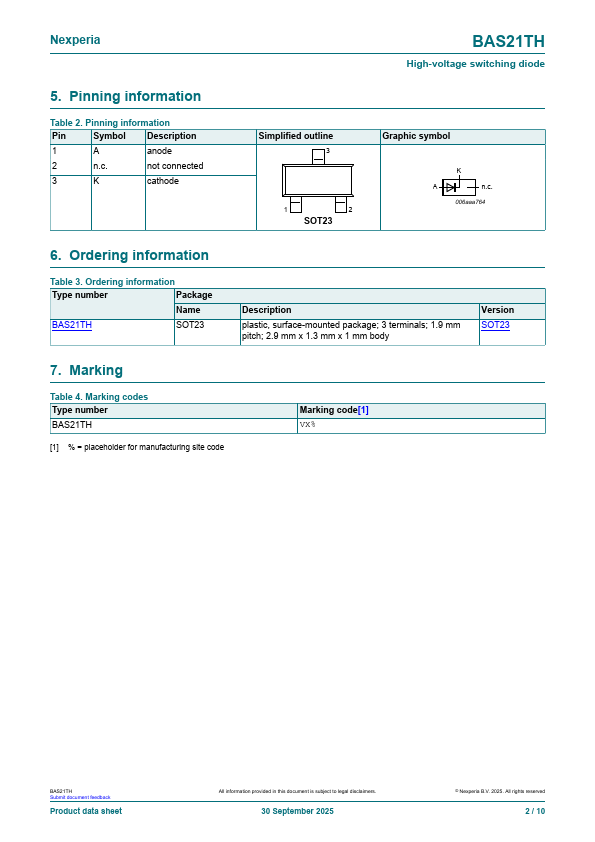

Additional preview pages of the BAS21TH datasheet.

Product details

Description

High-voltage switching diode, encapsulated in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package.

Features

Switching speed max. 50 ns.
Reverse voltage VR ≤ 200 V.
Repetitive peak reverse voltage VRRM ≤ 250 V.
Small SMD plastic package.
High-temperature.
