BAS40-06-Q - General-purpose dual Schottky diode

BAS40-06-Q Description

BAS40-06-Q General-purpose dual Schottky diode 17 February 2025 Product data sheet 1.General .
General-purpose dual Schottky diode in a small SOT23 Surface-Mounted Device (SMD) plastic package. High switching.

BAS40-06-Q Features

* High switching speed
* Low leakage current
* High breakdown voltage
* Low capacitance

BAS40-06-Q Applications

* 3. Applications
* Ultra high-speed switching
* Voltage clamping 4. Quick reference data Table 1. Quick reference data Symbol Parameter VR reverse voltage IR reverse current Conditions Tj = 25 °C VR = 30 V; Tamb = 25 °C Min Typ Max Unit - - 40 V - - 1 µA 5. Pinning

📥 Download Datasheet

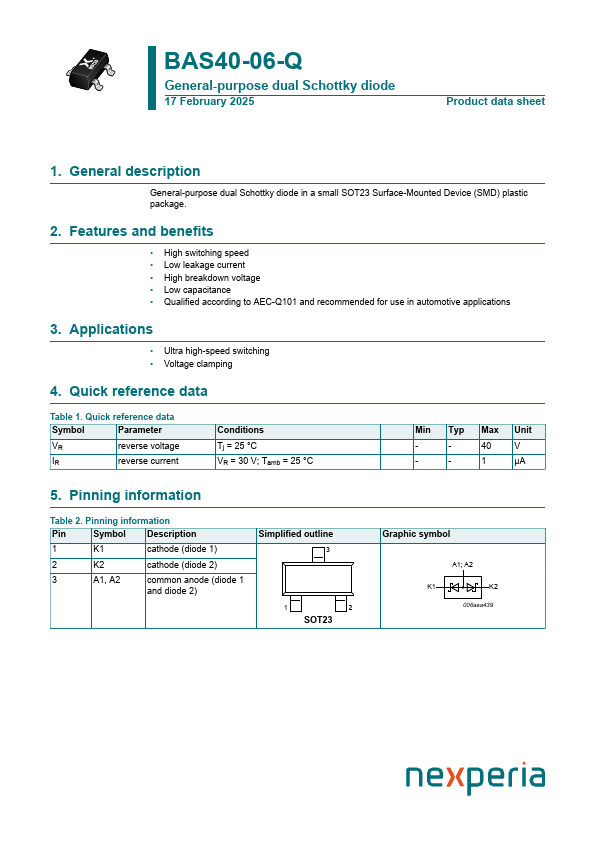

Preview of BAS40-06-Q PDF

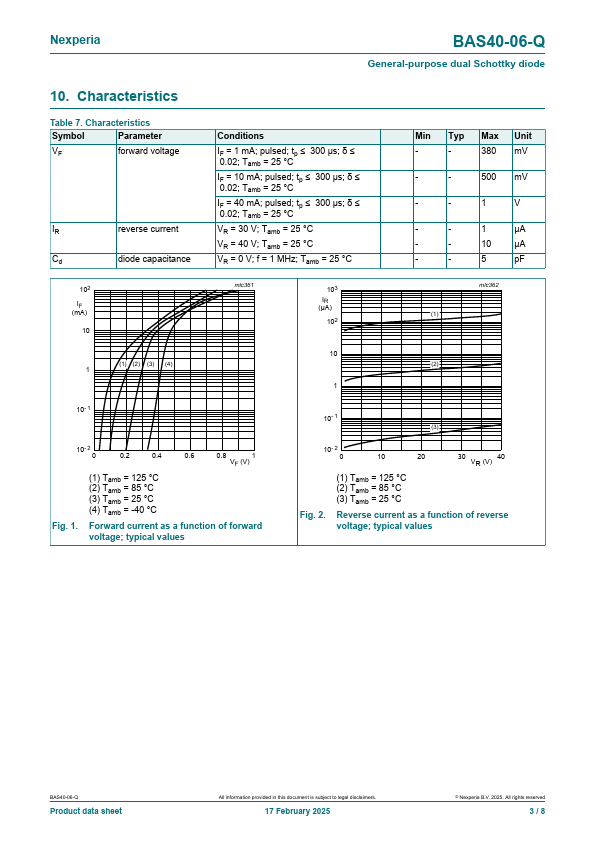

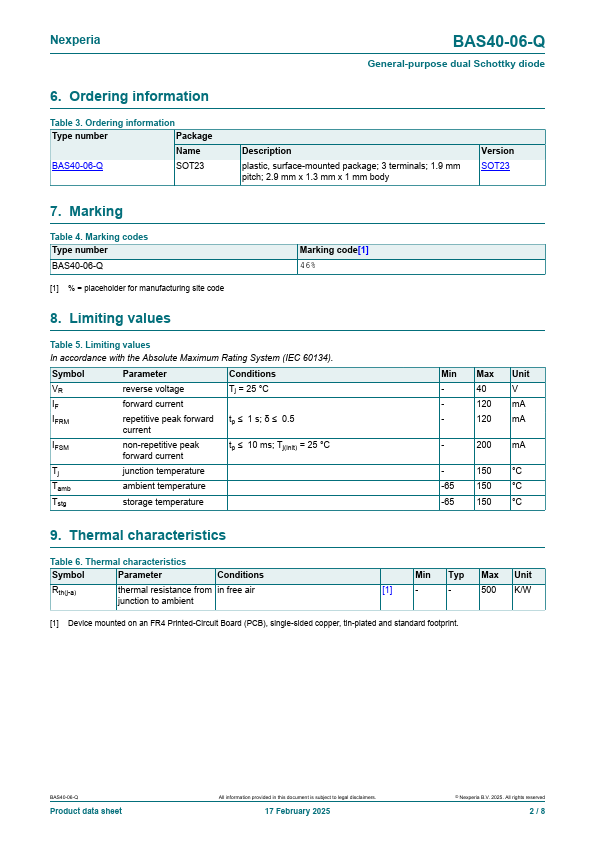

datasheet Preview Page 2 datasheet Preview Page 3
