BAS40L-Q - General-purpose Schottky diode

nexperia

📥 Download Datasheet

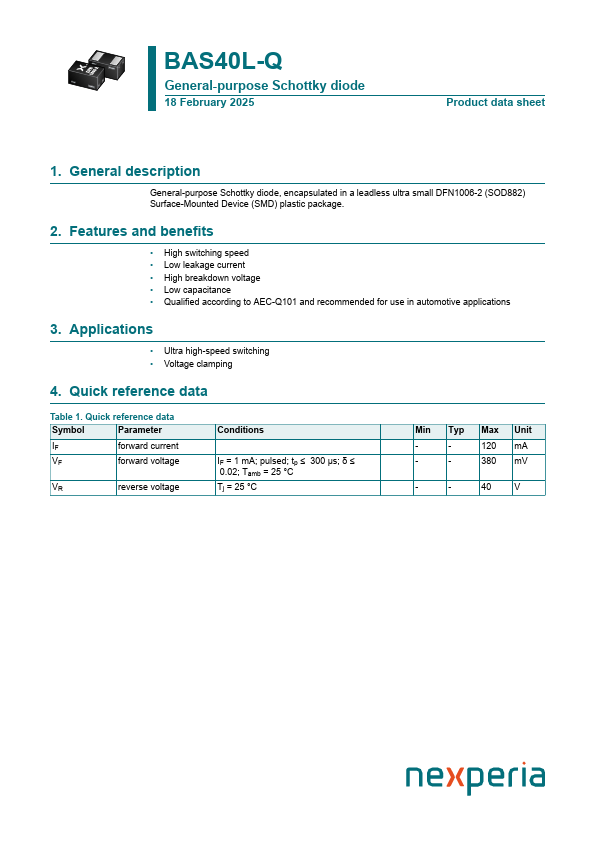

BAS40L-Q Datasheet Preview — Preview of BAS40L-Q PDF

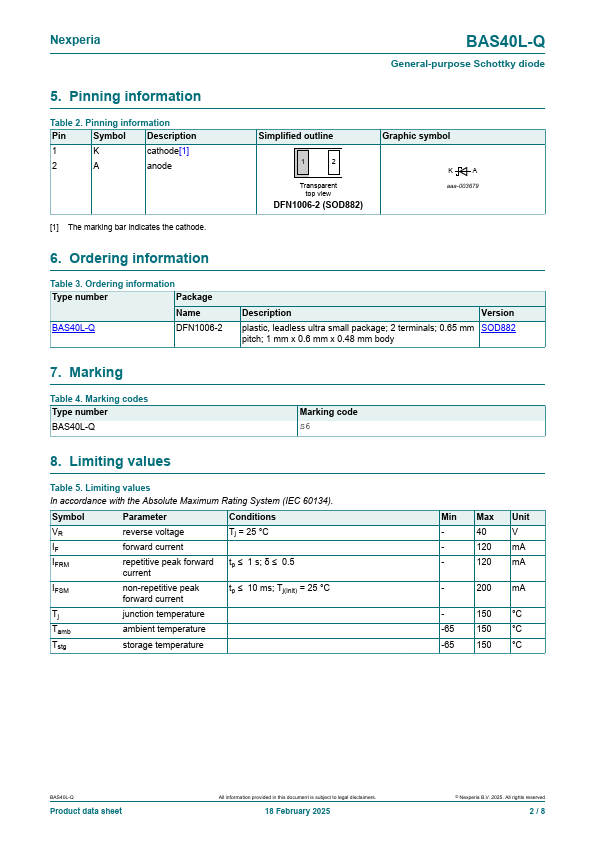

datasheet Preview Page 2

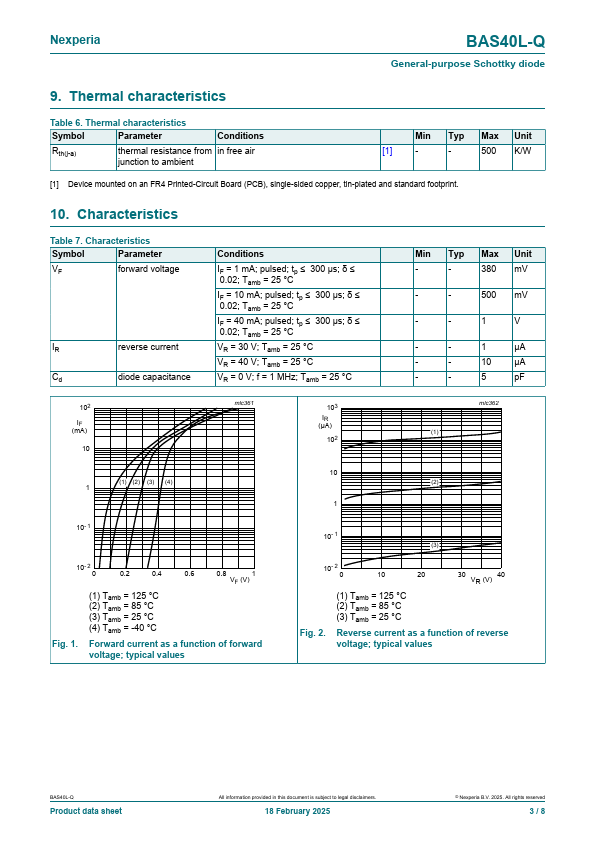

datasheet Preview Page 3

Datasheet Details

Part number	BAS40L-Q
Manufacturer	nexperia
File Size	167.67 KB
Description	General-purpose Schottky diode
Datasheet	BAS40L-Q-nexperia.pdf

BAS40L-Q Product details

Description

General-purpose Schottky diode, encapsulated in a leadless ultra small DFN1006-2 (SOD882) Surface-Mounted Device (SMD) plastic package.

Features

High switching speed.
Low leakage current.
High breakdown voltage.
Low capacitance.
Qualified according to AEC-Q101 and recommended for use in automotive.
