BAT54C-Q Schottky barrier diode

BAT54C-Q Description

BAT54C-Q Schottky barrier diode 15 June 2021 Product data sheet 1.General .
Planar Schottky barrier diode with an integrated guard ring for stress protection, encapsulated in a small SOT23 (TO-236AB) Surface-Mounted Device (SM.

BAT54C-Q Features

* Low forward voltage
* Low capacitance

BAT54C-Q Applications

* 3. Applications
* Ultra high-speed switching
* Line termination
* Voltage clamping
* Reverse polarity protection 4. Quick reference data Table 1. Quick reference data Symbol Parameter VR reverse voltage VF forward voltage IR reverse current Conditions IF =

📥 Download Datasheet

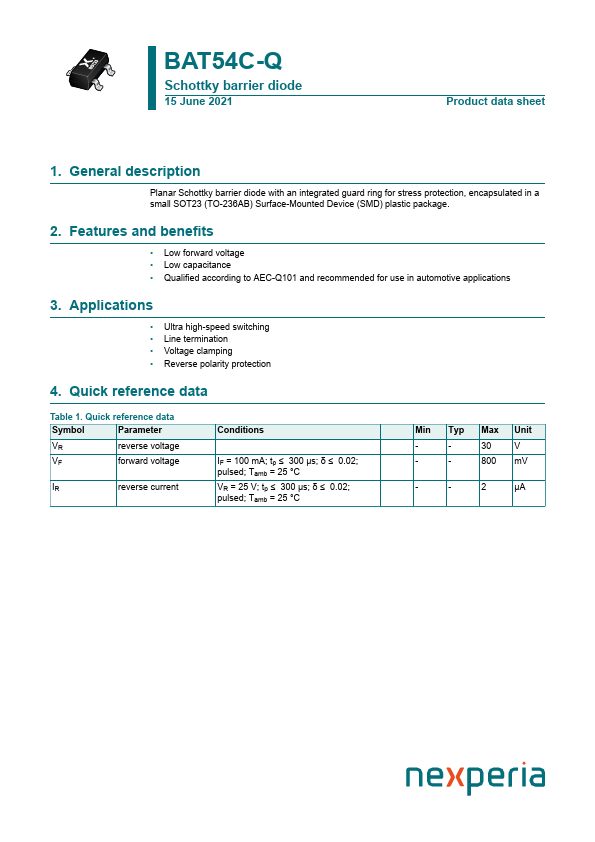

Preview of BAT54C-Q PDF

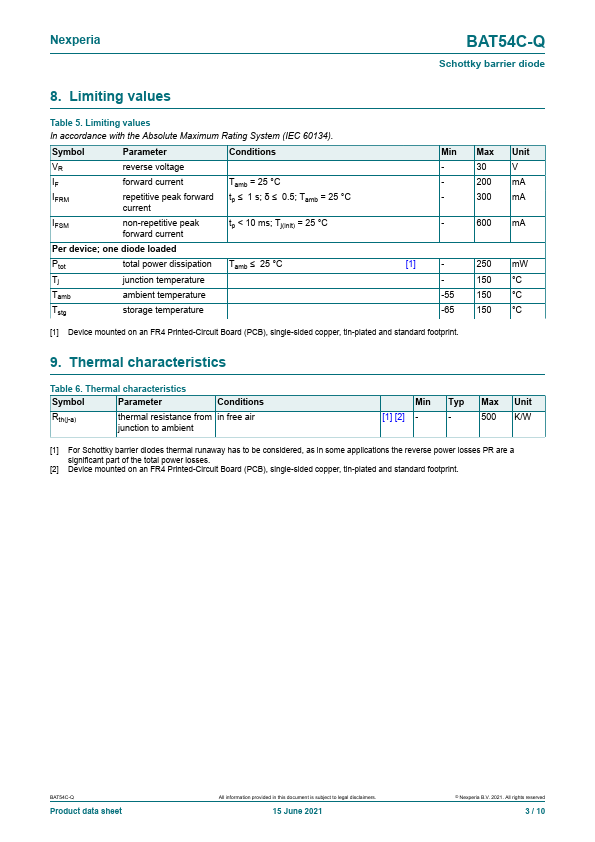

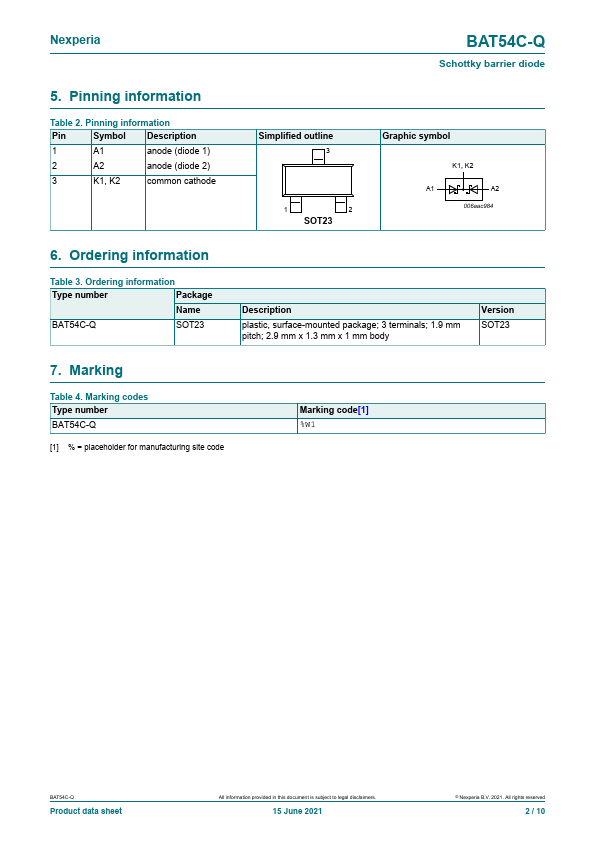

datasheet Preview Page 2 datasheet Preview Page 3
