BAT54CM Schottky barrier dual diode

BAT54CM Description

BAT54CM Schottky barrier dual diode 28 April 2025 Product data sheet 1.General .
Planar Schottky barrier dual diode encapsulated in an leadless ultra small SOT883 (SC-101) Surface-Mounted Device (SMD) plastic package.

BAT54CM Features

* Low forward voltage
* Leadless ultra small plastic package (1.0 x 0.6 x 0.5 mm)
* Boardspace 1.17 mm² (approx. 10% of SOT23)
* Power dissipation comparable to SOT23

BAT54CM Applications

* Ultra high-speed switching
* Voltage clamping
* Protection circuits
* Mobile communications, digital (still) cameras, PDAs and PCMCIA cards 4. Quick reference data Table 1. Quick reference data Symbol Parameter Per diode VR reverse voltage IF forward curren

📥 Download Datasheet

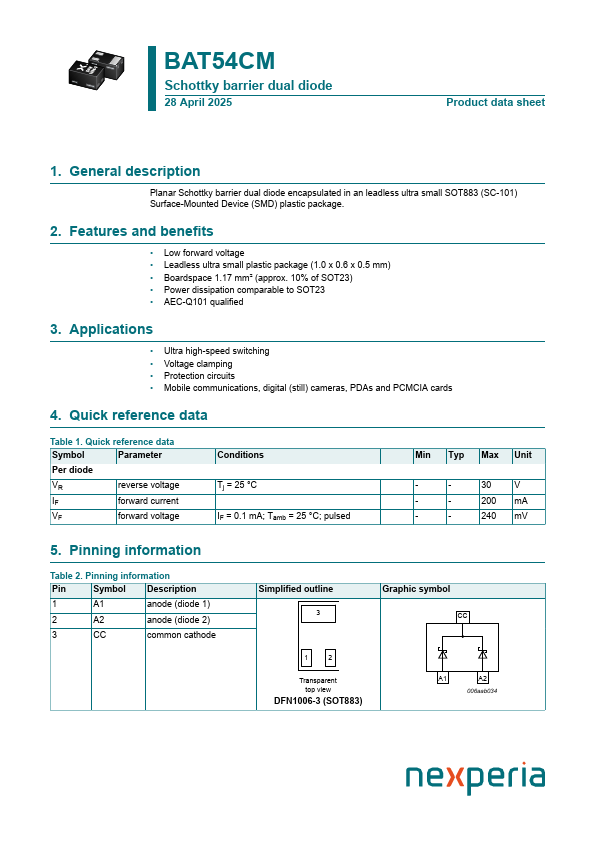

Preview of BAT54CM PDF

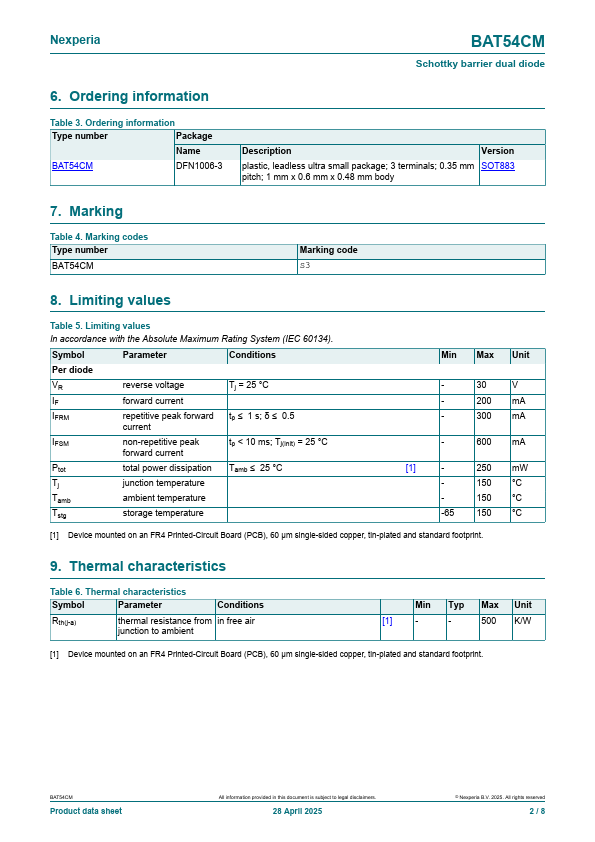

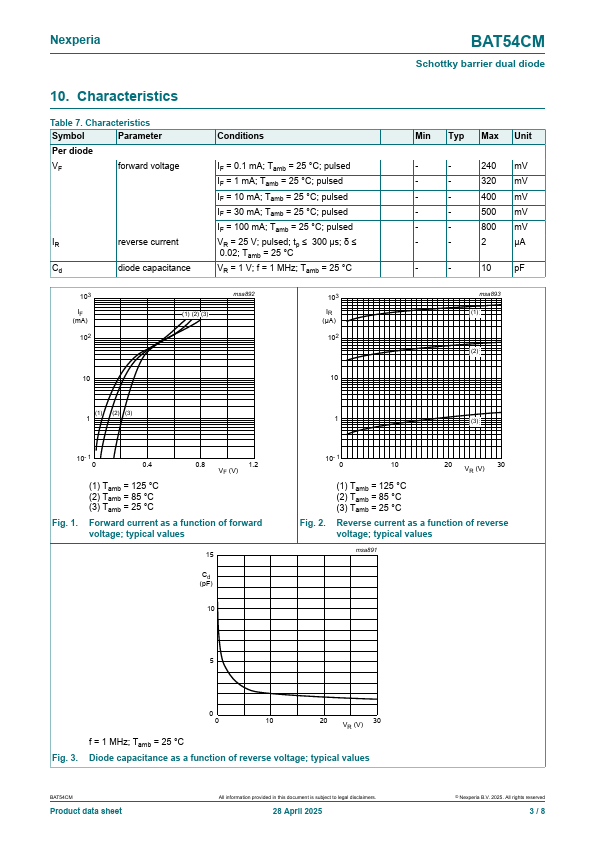

datasheet Preview Page 2 datasheet Preview Page 3
