BAT54CM-Q - Schottky barrier dual diode

Product Overview

nexperia

📥 Download Datasheet

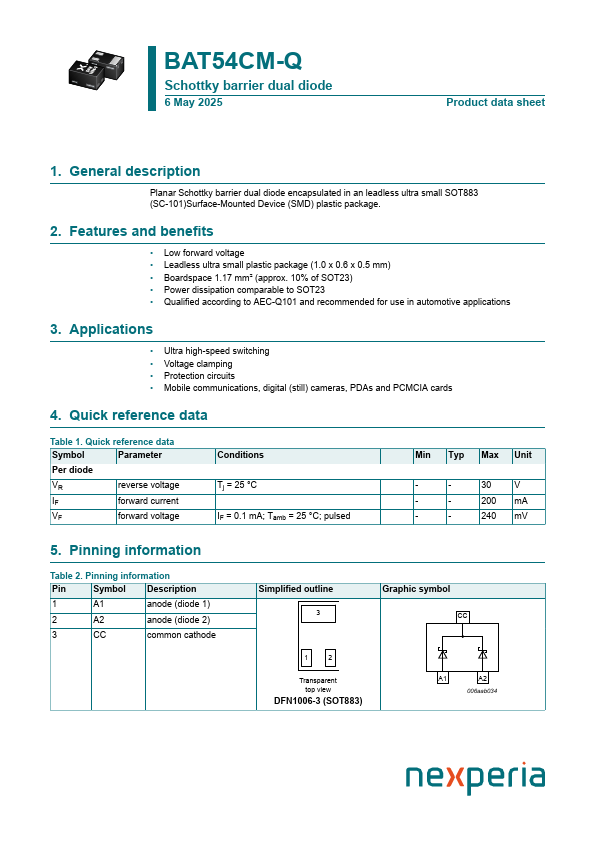

BAT54CM-Q Schottky barrier dual diode by nexperia - Datasheet Preview — Datasheet preview – BAT54CM-Q

Datasheet Details

Part number	BAT54CM-Q
Manufacturer	nexperia
File Size	187.83 KB
Description	Schottky barrier dual diode
Datasheet	BAT54CM-Q Datasheet

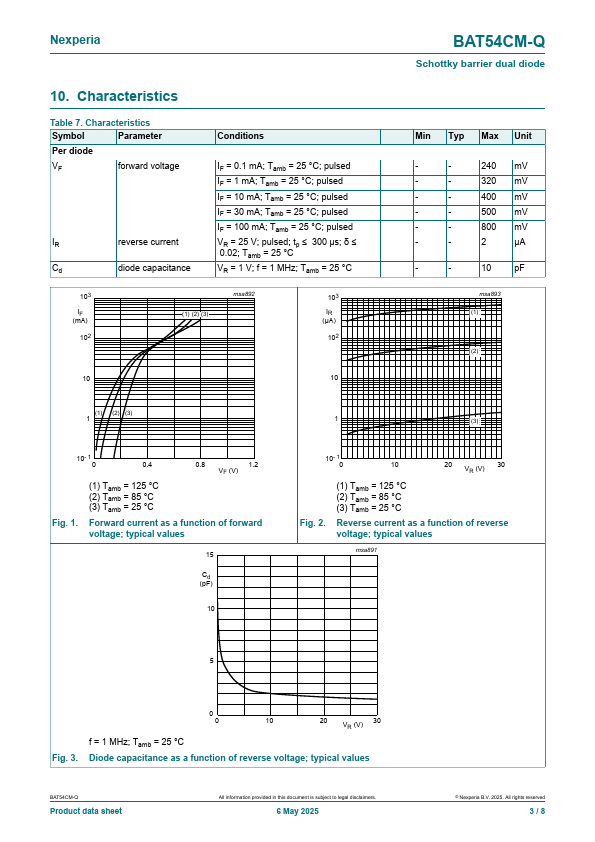

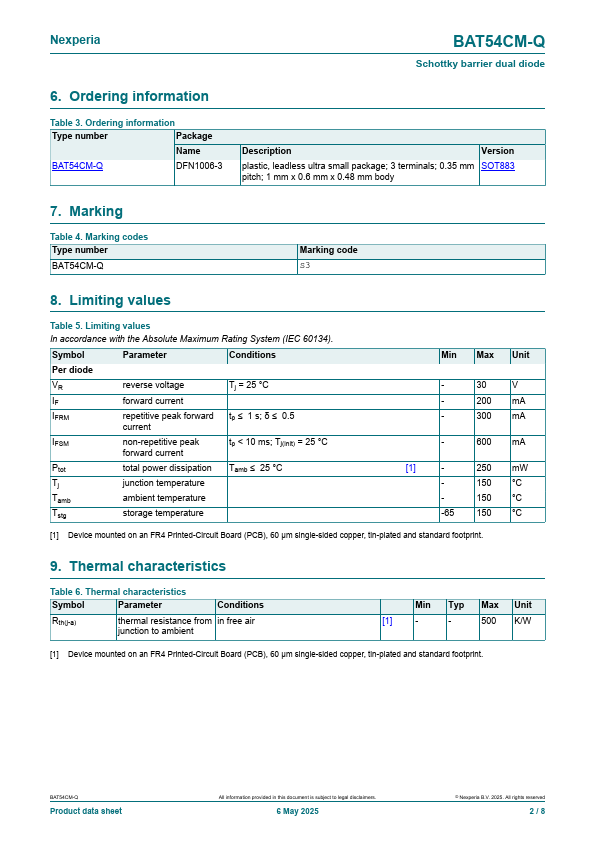

Additional preview pages of the BAT54CM-Q datasheet.

Product details

Description

Planar Schottky barrier dual diode encapsulated in an leadless ultra small SOT883 (SC-101)Surface-Mounted Device (SMD) plastic package.

Features

Low forward voltage.
Leadless ultra small plastic package (1.0 x 0.6 x 0.5 mm).
Boardspace 1.17 mm² (approx. 10% of SOT23).
Power dissipation comparable to SOT23.
Qualified according to AEC-Q101 and recommended for use in automotive.
