BAT54H - Schottky barrier single diode

The BAT54H by nexperia is a Schottky barrier single diode. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the BAT54H Schottky barrier single diode datasheet (nexperia).

Datasheet Details

Part number BAT54H
Manufacturer nexperia
File Size 580.30 KB
Description Schottky barrier single diode
Datasheet download datasheet BAT54H-nexperia.pdf

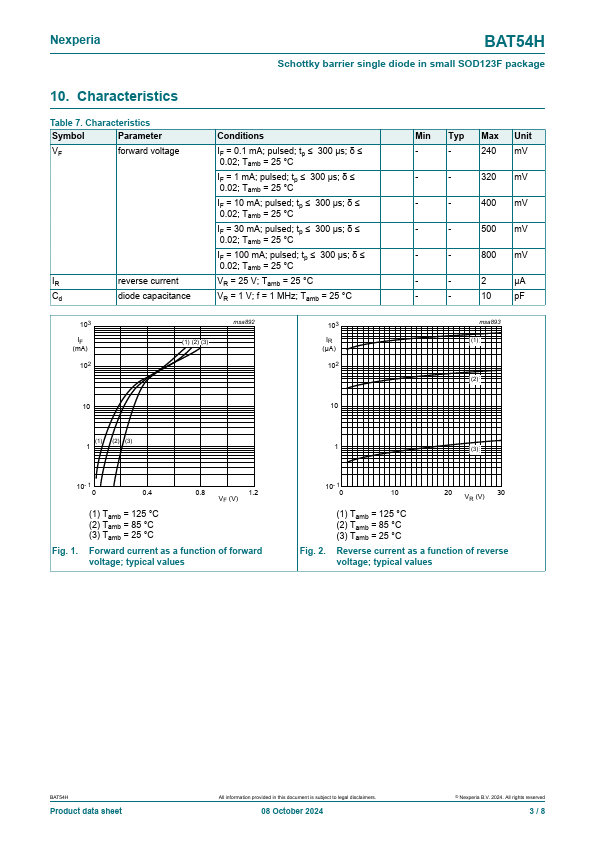

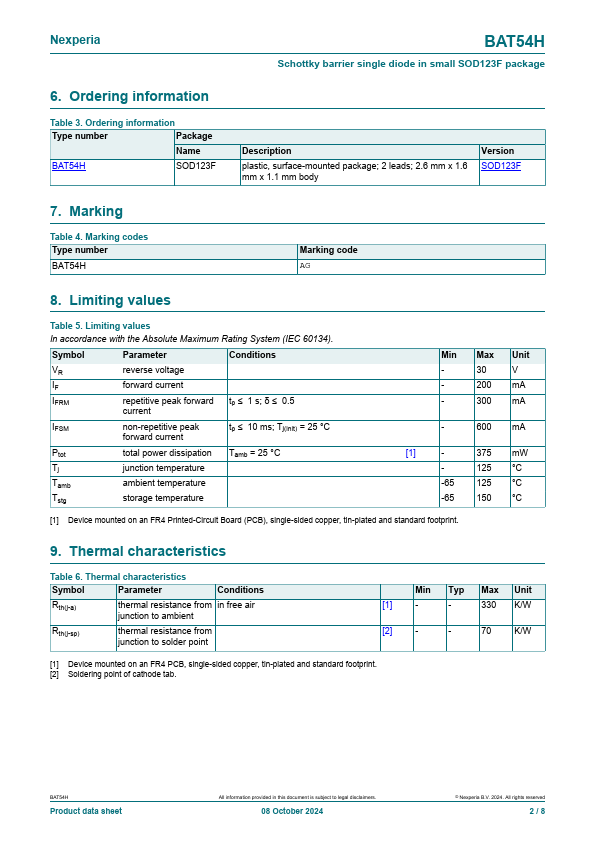

Additional preview pages of the BAT54H datasheet.

BAT54H Product details

Description

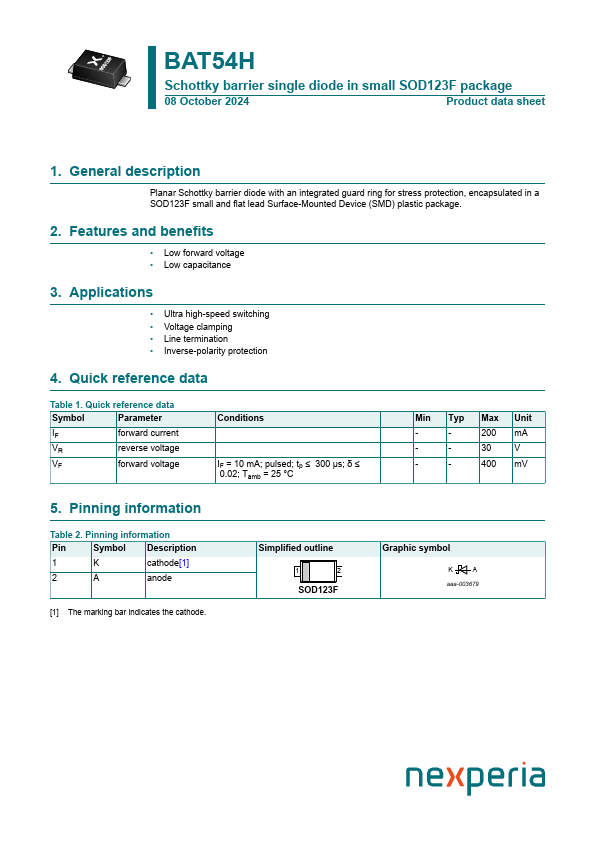

Planar Schottky barrier diode with an integrated guard ring for stress protection, encapsulated in a SOD123F small and flat lead Surface-Mounted Device (SMD) plastic package.

Features
