BAT54L-Q Schottky barrier diode

BAT54L-Q Description

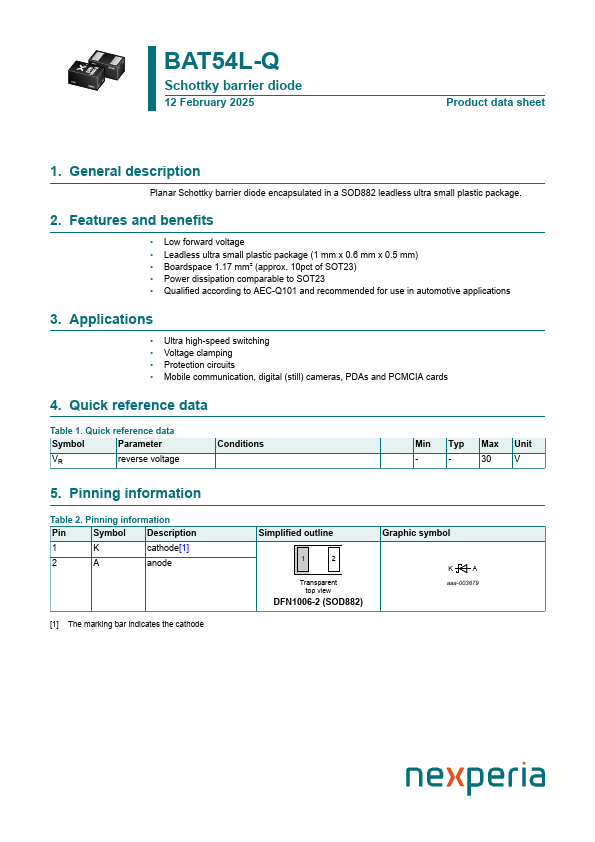

BAT54L-Q Schottky barrier diode 12 February 2025 Product data sheet 1.General .
Planar Schottky barrier diode encapsulated in a SOD882 leadless ultra small plastic package. Low forward voltage.

BAT54L-Q Features

* Low forward voltage
* Leadless ultra small plastic package (1 mm x 0.6 mm x 0.5 mm)
* Boardspace 1.17 mm² (approx. 10pct of SOT23)
* Power dissipation comparable to SOT23

BAT54L-Q Applications

* 3. Applications
* Ultra high-speed switching
* Voltage clamping
* Protection circuits
* Mobile communication, digital (still) cameras, PDAs and PCMCIA cards 4. Quick reference data Table 1. Quick reference data Symbol Parameter VR reverse voltage Conditions M
