BAT54XY-Q Schottky barrier diode

BAT54XY-Q Description

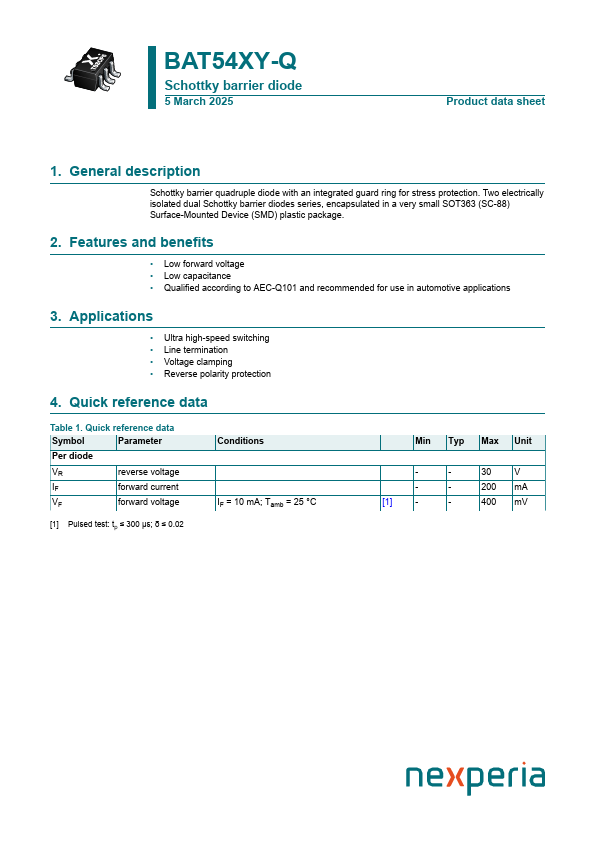

BAT54XY-Q Schottky barrier diode 5 March 2025 Product data sheet 1.General .
Schottky barrier quadruple diode with an integrated guard ring for stress protection.

BAT54XY-Q Features

* Low forward voltage
* Low capacitance

BAT54XY-Q Applications

* 3. Applications
* Ultra high-speed switching
* Line termination
* Voltage clamping

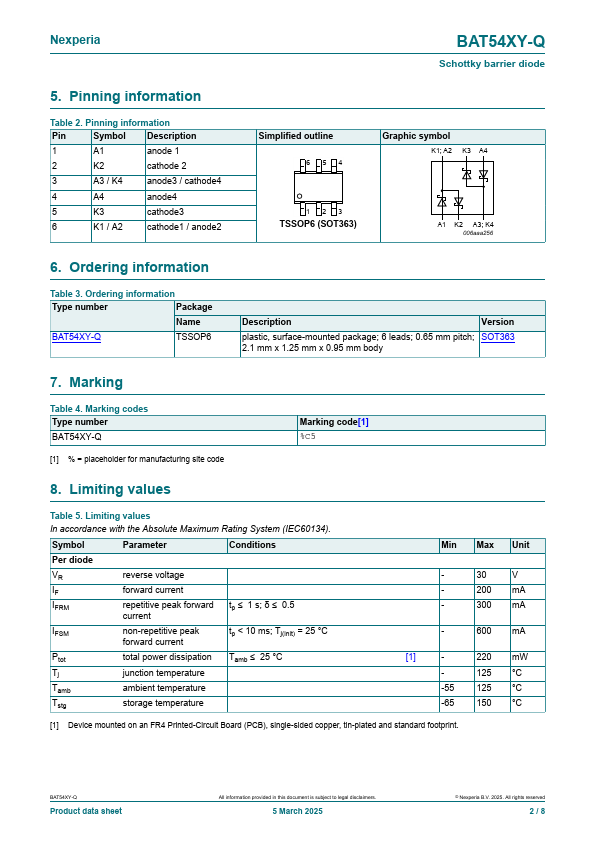

* Reverse polarity protection 4. Quick reference data Table 1. Quick reference data Symbol Parameter Per diode VR reverse voltage IF forward current VF forward voltage [1]
