BAV170M Dual common cathode low-leakage diode

BAV170M Description

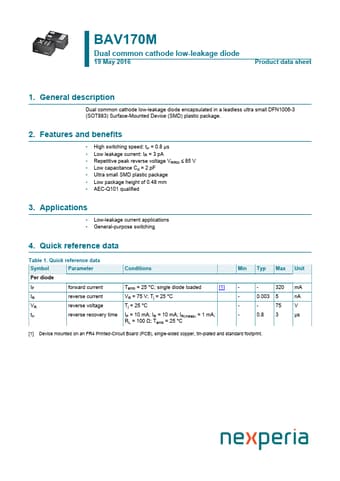

BAV170M Dual common cathode low-leakage diode 19 May 2016 Product data sheet 1.General .
Dual common cathode low-leakage diode encapsulated in a leadless ultra small DFN1006-3 (SOT883) Surface-Mounted Device (SMD) plastic package.

BAV170M Features

* High switching speed: trr = 0.8 µs
* Low leakage current: IR = 3 pA
* Repetitive peak reverse voltage VRRM ≤ 85 V
* Low capacitance Cd = 2 pF
* Ultra small SMD plastic package
* Low package height of 0.48 mm
* AEC-Q101 qualified 3. Applicati

BAV170M Applications

* Low-leakage current applications
* General-purpose switching 4. Quick reference data Table 1. Quick reference data Symbol Parameter Per diode IF forward current IR reverse current VR reverse voltage trr reverse recovery time Conditions Tamb = 25 °C; single diode loaded
