BC51-16PA - 45V 1A medium power transistors

This page provides the datasheet information for the BC51-16PA, a member of the BC51-16PA-1 45V 1A medium power transistors family.

Datasheet Summary

Description

PNP medium power transistors in an ultra thin SOT1061 leadless small Surface-Mounted Device (SMD) plastic package.

2.

Features

  • High current.
  • Three current gain selections.
  • High power dissipation capability.
  • Exposed heatsink for excellent thermal and electrical conductivity.
  • Leadless very small SMD plastic package with medium power capability 3.

📥 Download Datasheet

Datasheet preview – BC51-16PA

Datasheet Details

Part number BC51-16PA
Manufacturer nexperia
File Size 232.70 KB
Description 45V 1A medium power transistors
Datasheet download datasheet BC51-16PA Datasheet
Additional preview pages of the BC51-16PA datasheet.

📁 Similar Datasheet

  • BC516 - PNP Darlington transistor (NXP)
  • BC516 - PNP Silicon Darlington Transistor (Siemens Semiconductor Group)
  • BC516 - PNP Darlington Transistor (Fairchild Semiconductor)
  • BC516 - PNP Darlington Transistor (ON Semiconductor)
  • BC5161 - 2.4GHz GFSK Transmitter (Holtek Semiconductor)
  • BC5162 - 2.4GHz GFSK Transmitter (Holtek Semiconductor)
  • BC517 - Darlington Transistors (Motorola Inc)
  • BC517 - NPN Darlington Transistor (ON Semiconductor)
  • BC517 - NPN Darlington transistor (NXP)
  • BC517 - NPN Silicon Darlington Transistor (Siemens Semiconductor Group)
Other Datasheets by nexperia
  • BC51-10PA - 45V 1A medium power transistors
  • BC51PA - 45V 1A medium power transistors
  • BC51PAS - 1A PNP medium power transistors
  • BC52PA - 1A PNP medium power transistors
  • BC52PAS - 1A PNP medium power transistors
  • BC53PA - 1A PNP medium power transistors
  • BC53PAS - 1A PNP medium power transistors
  • BC54-10PA - 1A NPN medium power transistors

Full PDF Text Transcription

Click to expand full text

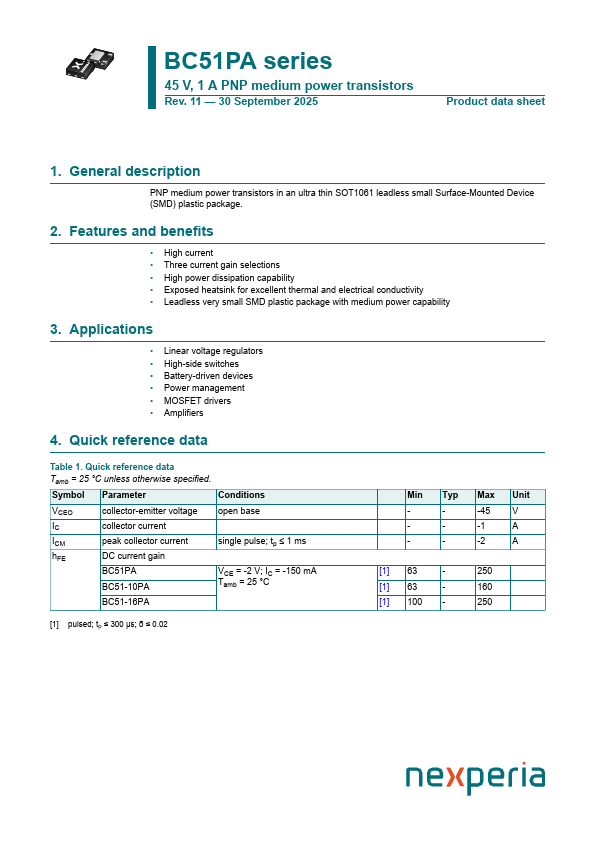

BC51PA series 45 V, 1 A PNP medium power transistors Rev. 11 — 30 September 2025 Product data sheet 1. General description PNP medium power transistors in an ultra thin SOT1061 leadless small Surface-Mounted Device (SMD) plastic package. 2. Features and benefits • High current • Three current gain selections • High power dissipation capability • Exposed heatsink for excellent thermal and electrical conductivity • Leadless very small SMD plastic package with medium power capability 3. Applications • Linear voltage regulators • High-side switches • Battery-driven devices • Power management • MOSFET drivers • Amplifiers 4. Quick reference data Table 1. Quick reference data Tamb = 25 °C unless otherwise specified.
