BC817-16QB-Q - 500mA NPN general-purpose transistors

Product Overview

nexperia

📥 Download Datasheet

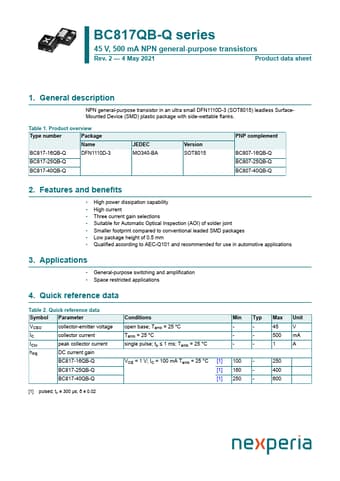

BC817-16QB-Q 500mA NPN general-purpose transistors by nexperia - Datasheet Preview — Datasheet preview – BC817-16QB-Q

Datasheet Details

Part number	BC817-16QB-Q
Manufacturer	nexperia
File Size	325.60 KB
Description	500mA NPN general-purpose transistors
Datasheet	BC817-16QB-Q Datasheet
Note	This datasheet PDF includes multiple part numbers: BC817-16QB-Q, BC817QB-Q. Please refer to the document for exact specifications by model.
Additional preview pages of the BC817-16QB-Q datasheet.

Product details

Description

NPN general-purpose transistor in an ultra small DFN1110D-3 (SOT8015) leadless SurfaceMounted Device (SMD) plastic package with side-wettable flanks.

Features

High power dissipation capability.
High current.
Three current gain selections.
Suitable for Automatic Optical Inspection (AOI) of solder joint.
Smaller footprint compared to conventional leaded SMD packages.
Low package height of 0.5 mm.
Qualified according to AEC-Q101 and recommended for use in automotive.
