BC856B-Q Datasheet - nexperia

100mA PNP transistors

BC856B-Q Features

* Low current (max. 100 mA)

* Low voltage (max. 65 V)

* Qualified according to AEC-Q101 and recommended for use in automotive applications 3. Applications

* General-purpose switching and amplification Nexperia BC856-Q; BC857-Q; BC858-Q 65 V, 100 mA PNP general-purpo

BC856B-Q General Description

PNP general-purpose transistors in a small SOT23 (TO-236AB), Surface-Mounted Device (SMD) plastic package. Table 1. Product overview Type number Package Nexperia BC856-Q SOT23 BC856A-Q BC856B-Q BC857-Q BC857A-Q BC857B-Q BC857C-Q BC858B-Q JEDEC TO-236AB NPN complement BC846-Q BC846A-Q.

BC856B-Q Datasheet (227.61 KB)

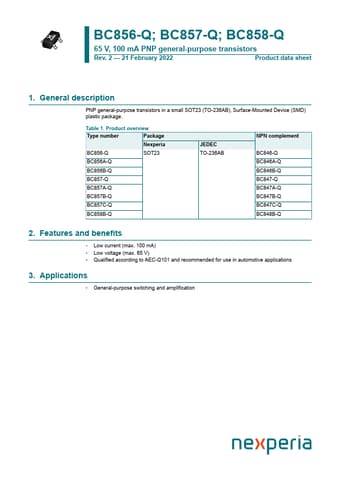

Preview of BC856B-Q PDF

Datasheet Details

Part number:

BC856B-Q

Manufacturer:

nexperia ↗

File Size:

227.61 KB

Description:

100ma pnp transistors.
