BC857AQB

The BC857AQB is 100mA PNP general-purpose transistor designed by nexperia.

Product Overview

nexperia

📥 Download Datasheet

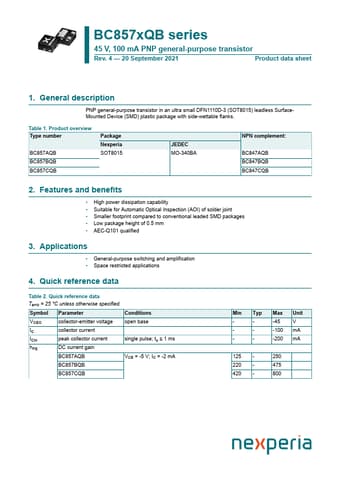

BC857AQB 100mA PNP general-purpose transistor by nexperia - Datasheet Preview — Datasheet preview – BC857AQB

Datasheet Details

Part number	BC857AQB
Manufacturer	nexperia
File Size	239.73 KB
Description	100mA PNP general-purpose transistor
Datasheet	BC857AQB-nexperia.pdf
Additional preview pages of the BC857AQB datasheet.

Product details

Description

PNP general-purpose transistor in an ultra small DFN1110D-3 (SOT8015) leadless SurfaceMounted Device (SMD) plastic package with side-wettable flanks.

Features

High power dissipation capability.
Suitable for Automatic Optical Inspection (AOI) of solder joint.
Smaller footprint compared to conventional leaded SMD packages.
Low package height of 0.5 mm.
AEC-Q101 qualified 3.
