BCM56DS Datasheet, Transistors, nexperia

BCM56DS Features

• Transistors
• High collector current capability IC and ICM
• Reduces component count
• Reduces pick and place costs
• Current gain matching 5%
• Application-

PDF File Details

Part number:

BCM56DS

Manufacturer:

nexperia ↗

File Size:

233.38kb

Download:

📄 Datasheet

Description:

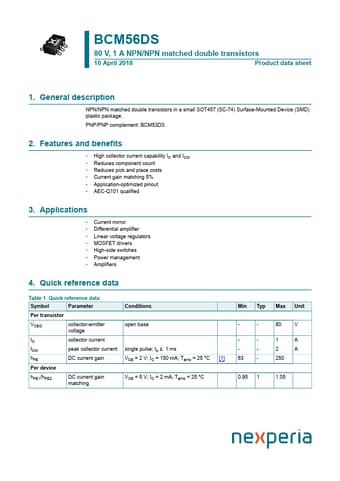

1a npn/npn matched double transistors. NPN/NPN matched double transistors in a small SOT457 (SC-74) Surface-Mounted Device (SMD) plastic package. PNP/PNP complement: BCM53D

BCM56DS Application

• Applications
• Current mirror
• Differential amplifier
• Linear voltage regulators
• MOSFET drivers
• High-s
