BCP56H NPN medium power transistors

BCP56H Description

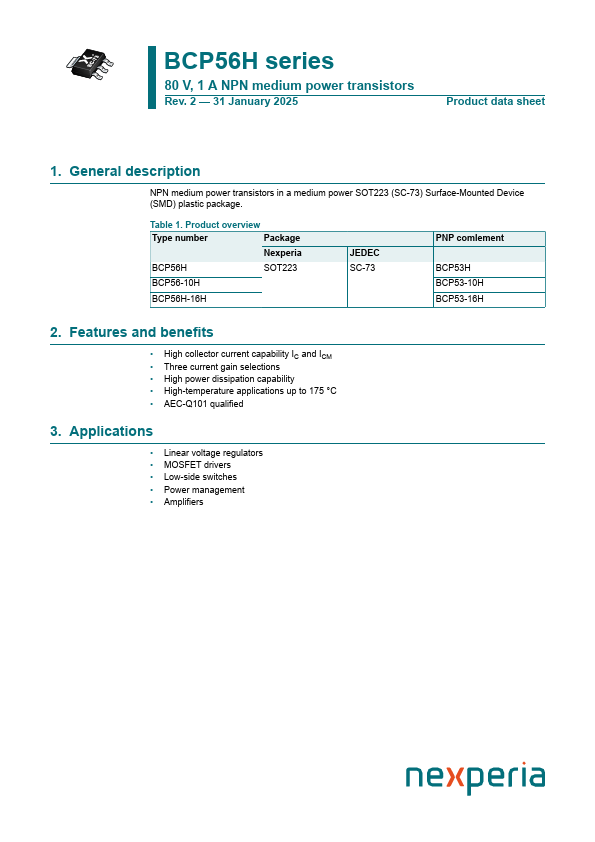

BCP56H series 80 V, 1 A NPN medium power transistors Rev.2 * 31 January 2025 Product data sheet 1.General .
NPN medium power transistors in a medium power SOT223 (SC-73) Surface-Mounted Device (SMD) plastic package.

BCP56H Features

* High collector current capability IC and ICM
* Three current gain selections
* High power dissipation capability

BCP56H Applications

* up to 175 °C
* AEC-Q101 qualified 3. Applications
* Linear voltage regulators
* MOSFET drivers
* Low-side switches
* Power management

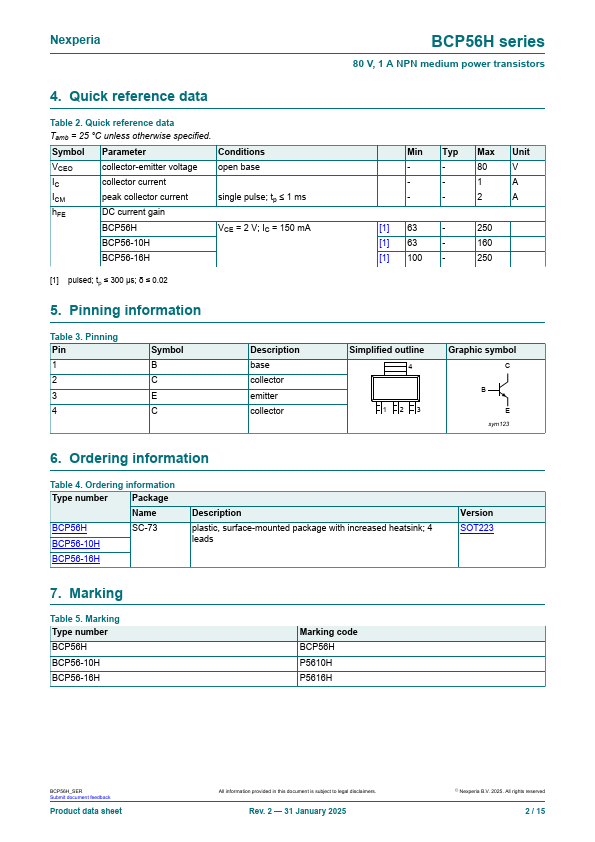

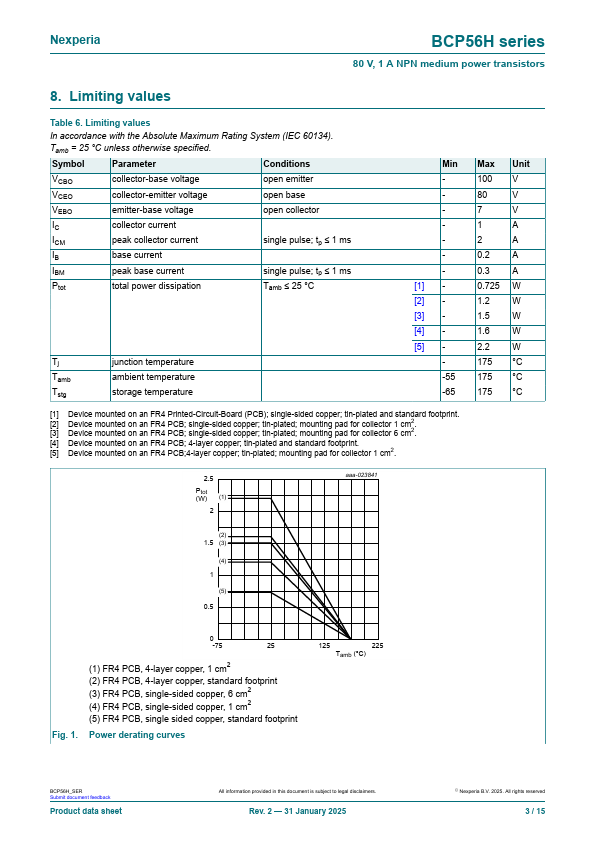

* Amplifiers Nexperia 4. Quick reference data Table 2. Quick reference data Tamb = 25 °C unless otherwise specified
