BCX51T - 1A PNP transistors

BCX51T Description

BCX51T series 45 V, 1 A PNP power bipolar transistors Rev.1 * 22 August 2019 Product data sheet 1.Product profile 1.1.General descriptio.
PNP power transistors in a medium power SOT89 (SC-62) Surface-Mounted Device (SMD) plastic package.

BCX51T Features

* High collector current capability IC and ICM
* Three current gain selections
* High power dissipation capability

BCX51T Applications

* Linear voltage regulators
* MOSFET drivers
* High-side switches
* Power management
* Amplifiers 1.4. Quick reference data Table 2. Quick reference data Tamb = 25 °C unless otherwise specified. Symbol Parameter Conditions VCEO collector-emitter voltage

📥 Download Datasheet

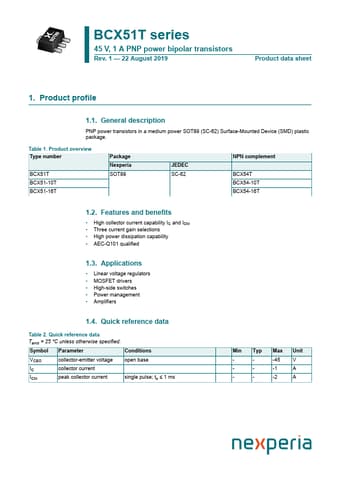

Preview of BCX51T PDF
datasheet Preview Page 2 datasheet Preview Page 3
