BSP51 NPN Darlington transistor

BSP51 Description

BSP51 NPN Darlington transistor 30 September 2025 Product data sheet 1.General .
NPN Darlington transistor in an SOT223 Surface-Mounted Device (SMD) plastic package. High cu.

BSP51 Features

* High current of 1 A
* Low voltage of 60 V

BSP51 Applications

* Industrial high gain amplification 4. Quick reference data Table 1. Quick reference data Symbol Parameter VCBO collector-base voltage VCES collector-emitter voltage IC collector current ICM peak collector current hFE DC current gain Conditions open emitter base short-circuit

📥 Download Datasheet

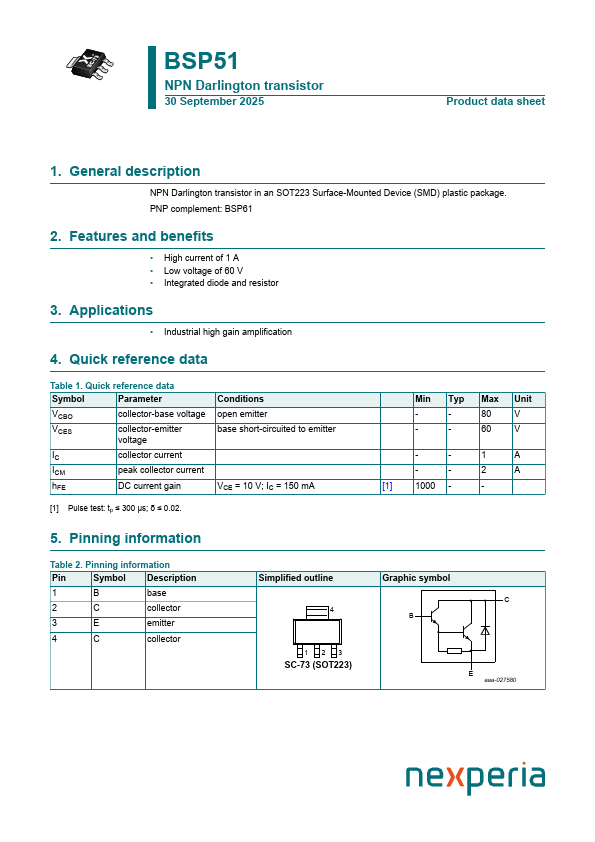

Preview of BSP51 PDF

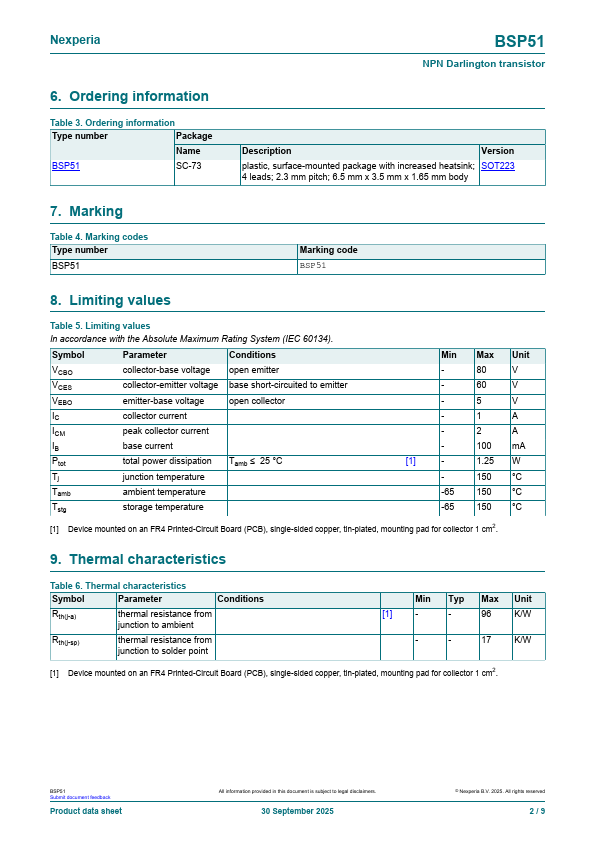

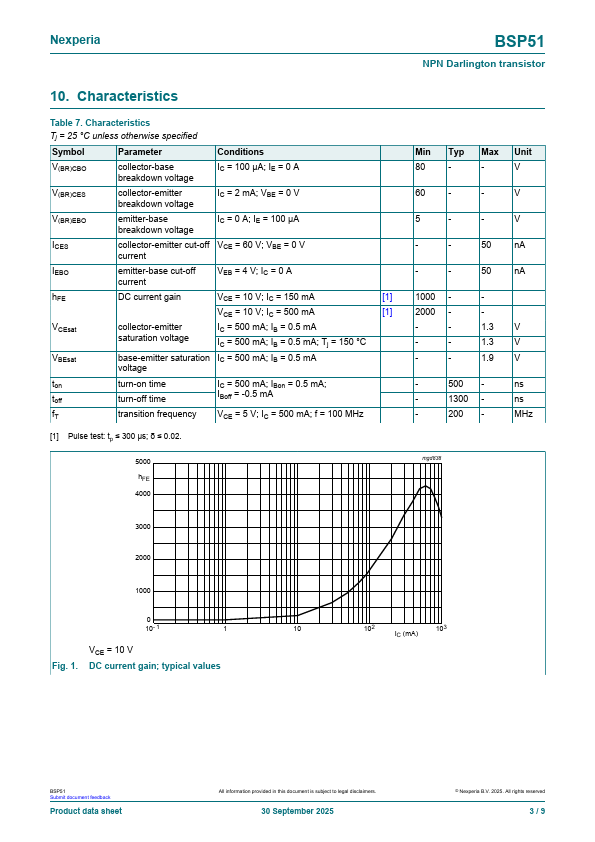

datasheet Preview Page 2 datasheet Preview Page 3
