BUK6Q100-80P - 80V P-channel Trench MOSFET

BUK6Q100-80P Description

BUK6Q100-80P 80 V, P-channel Trench MOSFET 1 October 2025 Product data sheet 1.General .
P-channel enhancement mode Field-Effect Transistor (FET) in an MLPAK33-WF (SOT8002-3) Surface-Mounted Device (SMD) plastic package using Trench MOSFET.

BUK6Q100-80P Features

* Logic-level compatible
* Very fast switching
* Trench MOSFET technology
* Side-wettable flanks for optical solder inspection
* Thermally efficient package in a small form factor (3.3 mm x 3.3 mm footprint)

BUK6Q100-80P Applications

* Reverse polarity protection
* High-speed line driver
* High-side load switch
* Relay driver 4. Quick reference data Table 1. Quick reference data Symbol Parameter VDS drain-source voltage VGS gate-source voltage ID drain current Ptot total power dissipat

📥 Download Datasheet

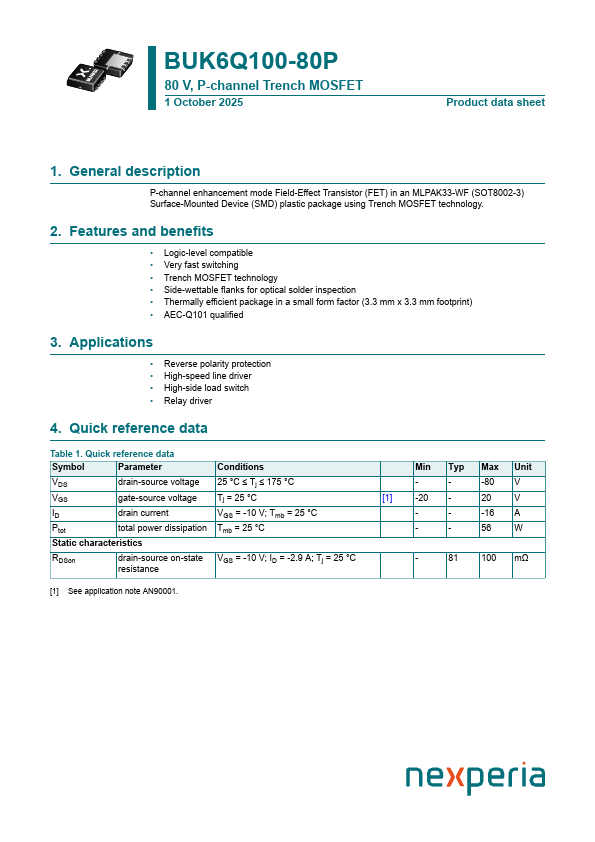

Preview of BUK6Q100-80P PDF

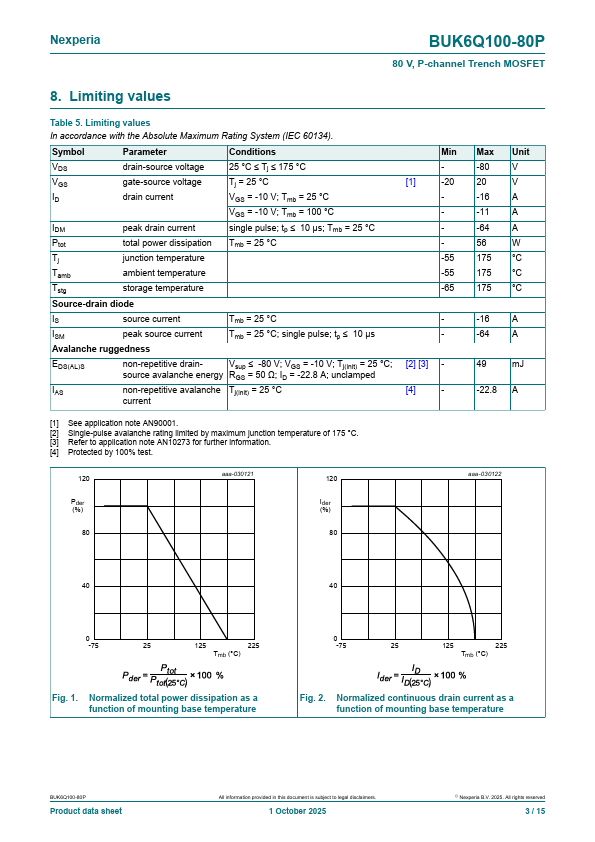

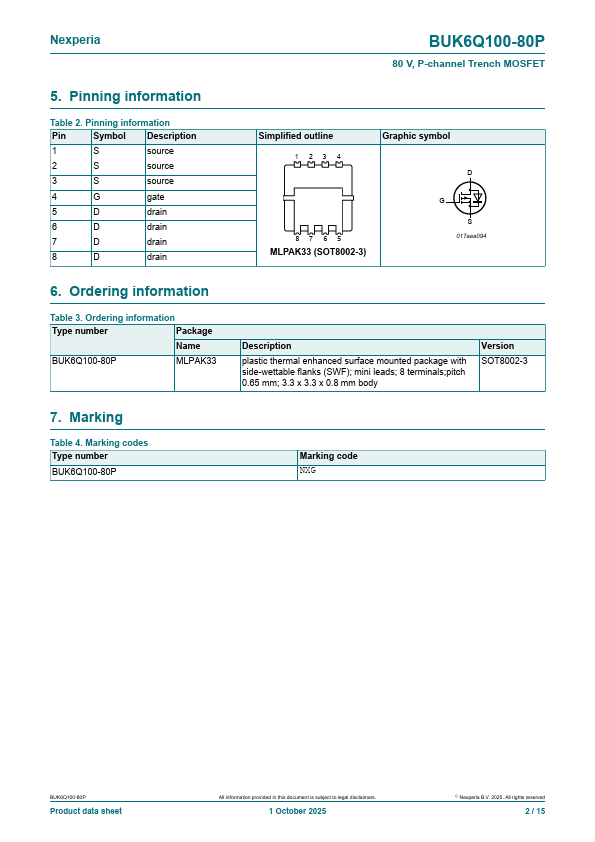

datasheet Preview Page 2 datasheet Preview Page 3
