BUK9Y6R5-40H N-channel 40V MOSFET

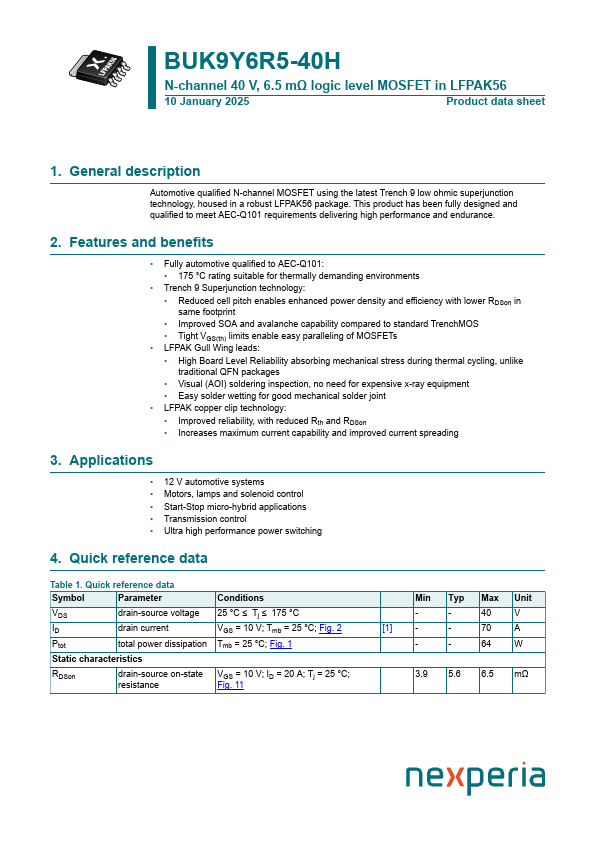

📥 Download Datasheet Datasheet Preview Page 1

Description

BUK9Y6R5-40H N-channel 40 V, 6.5 mΩ logic level MOSFET in LFPAK56 10 January 2025 Product data sheet 1.General .
Automotive qualified N-channel MOSFET using the latest Trench 9 low ohmic superjunction technology, housed in a robust LFPAK56 package.

📥 Download Datasheet

Preview of BUK9Y6R5-40H PDF

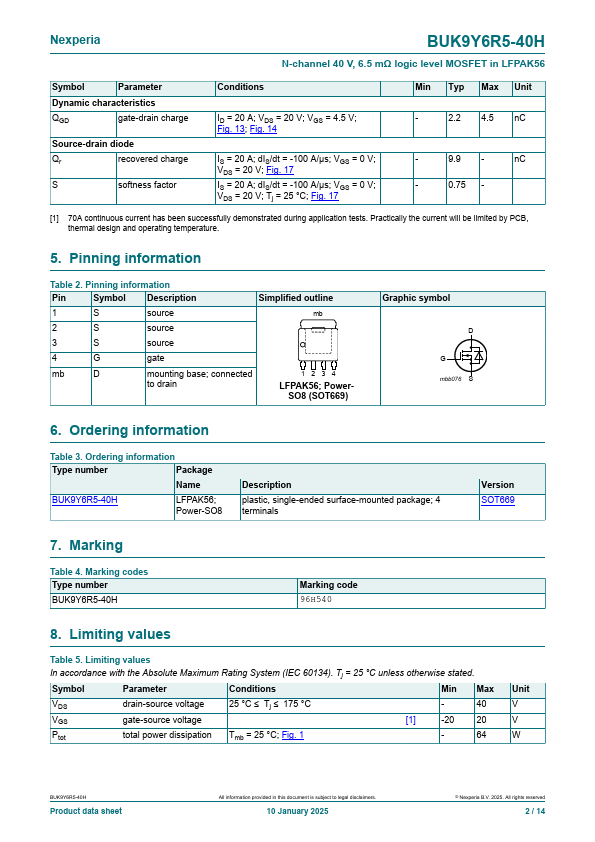

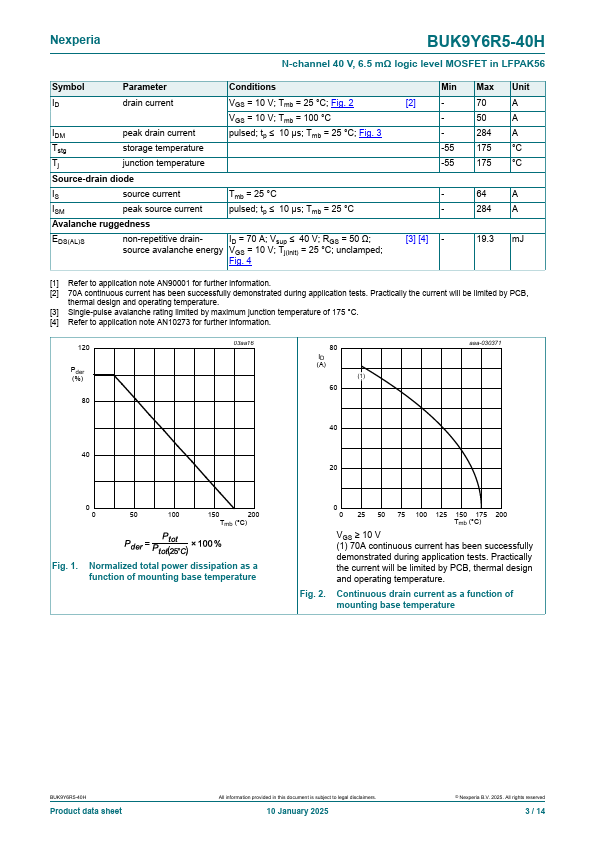

datasheet Preview Page 2 datasheet Preview Page 3

Features

* Fully automotive qualified to AEC-Q101:
* 175 °C rating suitable for thermally demanding environments
* Trench 9 Superjunction technology:
* Reduced cell pitch enables enhanced power density and efficiency with lower RDSon in same footprint
* Improved SOA an

Applications

* 12 V automotive systems
* Motors, lamps and solenoid control
* Start-Stop micro-hybrid applications
* Transmission control
* Ultra high performance power switching 4. Quick reference data Table 1. Quick reference data Symbol Parameter VDS drain-source
