BZB100A-Q - Bidirectional Zener diode

nexperia

📥 Download Datasheet

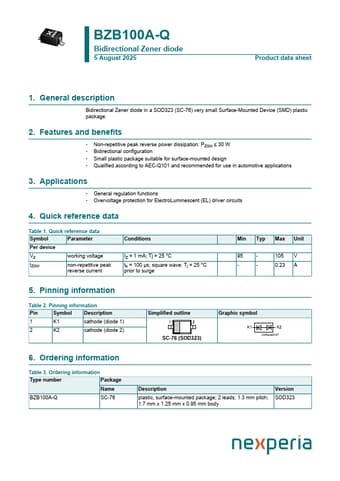

BZB100A-Q Datasheet Preview — Preview of BZB100A-Q PDF

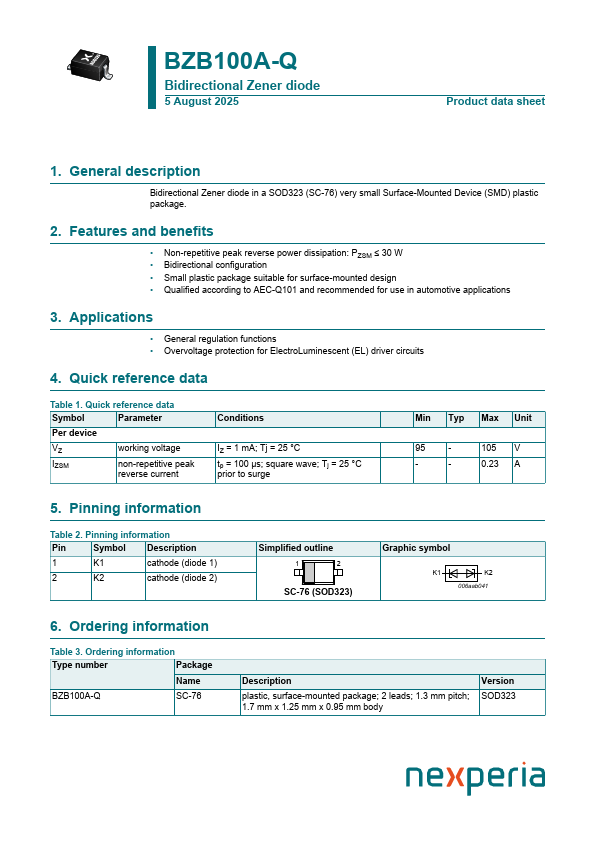

datasheet Preview Page 2

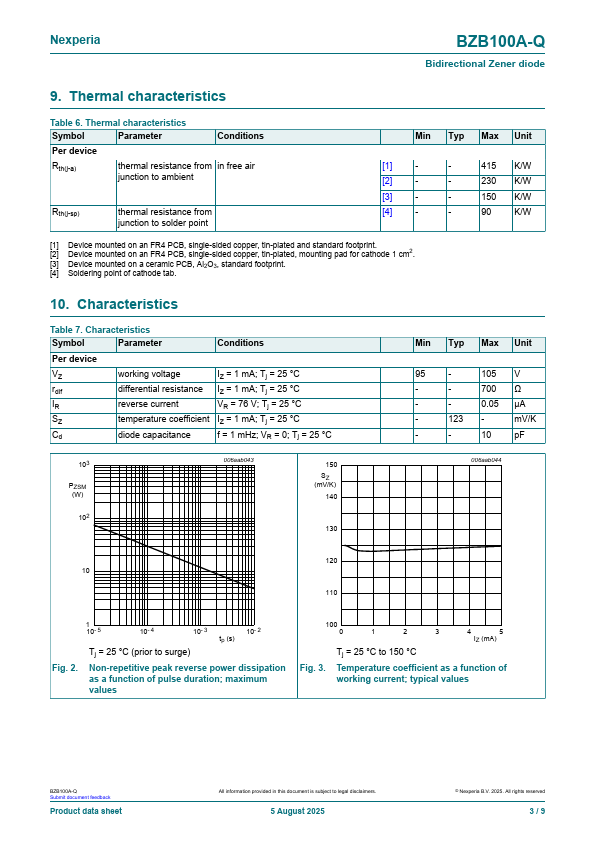

datasheet Preview Page 3

Datasheet Details

Part number	BZB100A-Q
Manufacturer	nexperia ↗
File Size	194.95 KB
Description	Bidirectional Zener diode
Datasheet	BZB100A-Q-nexperia.pdf

BZB100A-Q Product details

Description

Bidirectional Zener diode in a SOD323 (SC-76) very small Surface-Mounted Device (SMD) plastic package.

Features

Non-repetitive peak reverse power dissipation: PZSM ≤ 30 W.
Bidirectional conﬁguration.
Small plastic package suitable for surface-mounted design.
Qualified according to AEC-Q101 and recommended for use in automotive.
