BZB784 - Voltage regulator double diodes

Datasheet Summary

Description

Low-power voltage regulator double diodes in a SOT323 (SC-70) small Surface-Mounted Device (SMD) plastic package.

2.

Features

  • Total power dissipation: ≤ 350 mW.
  • Approximately 5% VZ tolerance.
  • Working voltage range: nominal 2.4 to 15 V (E24 range) 3.

📥 Download Datasheet

Datasheet preview – BZB784

Datasheet Details

Part number BZB784
Manufacturer nexperia
File Size 195.22 KB
Description Voltage regulator double diodes
Datasheet download datasheet BZB784 Datasheet

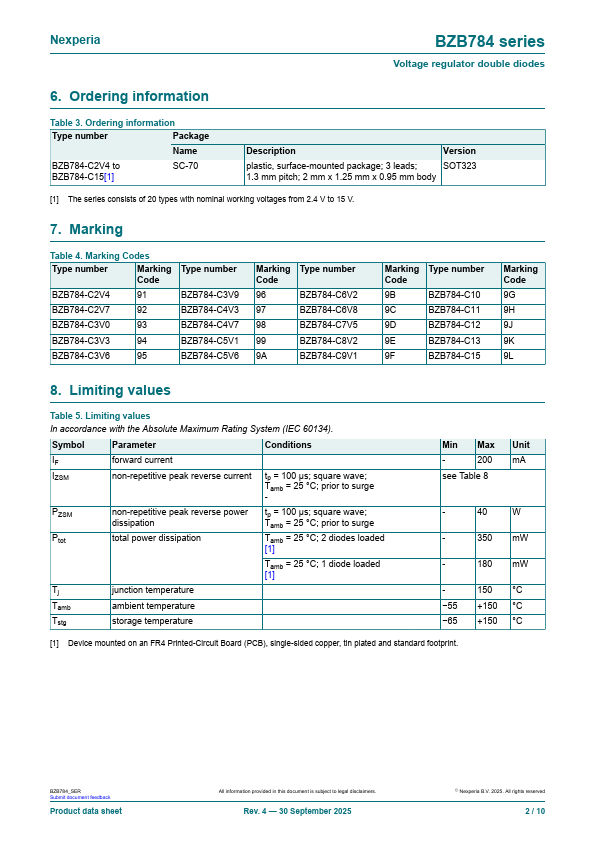

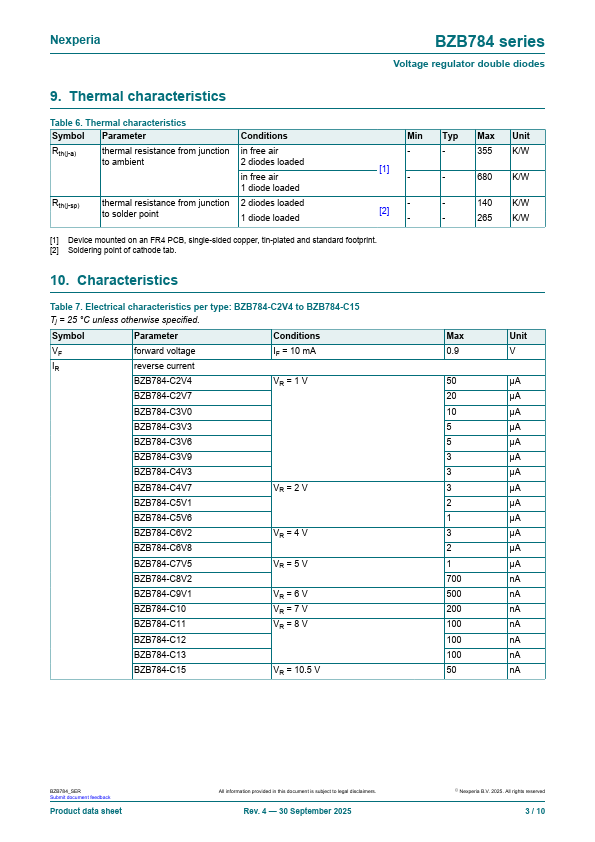

Additional preview pages of the BZB784 datasheet.

📁 Similar Datasheet

  • BZB784 - Voltage regulator double diodes (NXP)
  • BZB784-C10 - Voltage regulator double diodes (NXP)
  • BZB784-C11 - Voltage regulator double diodes (NXP)
  • BZB784-C12 - Voltage regulator double diodes (NXP)
  • BZB784-C13 - Voltage regulator double diodes (NXP)
  • BZB784-C15 - Voltage regulator double diodes (NXP)
  • BZB784-C2V4 - Voltage regulator double diodes (NXP)
  • BZB784-C2V7 - Voltage regulator double diodes (NXP)
  • BZB784-C3V0 - Voltage regulator double diodes (NXP)
  • BZB784-C3V3 - Voltage regulator double diodes (NXP)
Other Datasheets by nexperia

Full PDF Text Transcription

Click to expand full text

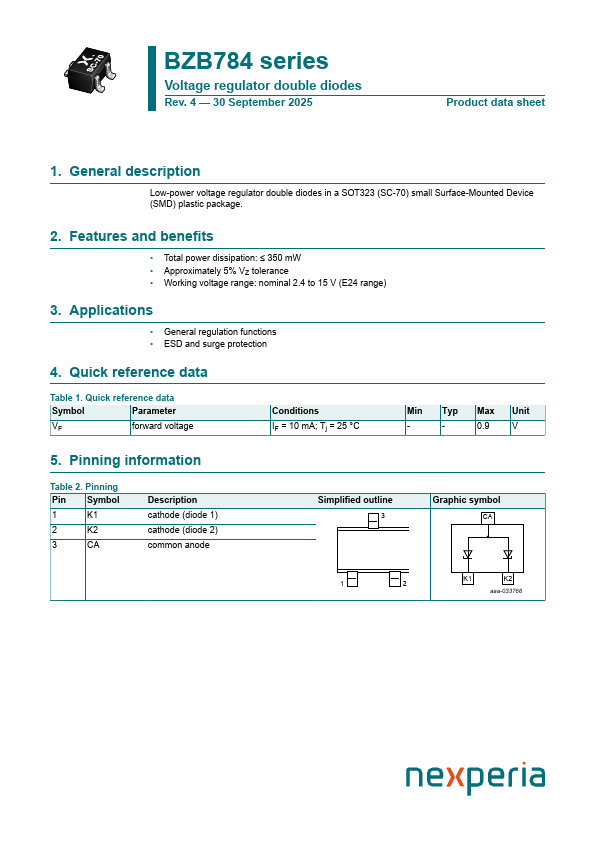

BZB784 series Voltage regulator double diodes Rev. 4 — 30 September 2025 Product data sheet 1. General description Low-power voltage regulator double diodes in a SOT323 (SC-70) small Surface-Mounted Device (SMD) plastic package. 2. Features and benefits • Total power dissipation: ≤ 350 mW • Approximately 5% VZ tolerance • Working voltage range: nominal 2.4 to 15 V (E24 range) 3. Applications • General regulation functions • ESD and surge protection 4. Quick reference data Table 1. Quick reference data Symbol Parameter VF forward voltage Conditions IF = 10 mA; Tj = 25 °C Min Typ Max Unit - - 0.9 V 5. Pinning information Table 2.
