BZB784-C10 - Voltage regulator double diodes

This page provides the datasheet information for the BZB784-C10, a member of the BZB784 Voltage regulator double diodes family.

Datasheet Summary

Description

Low-power voltage regulator double diodes in a SOT323 (SC-70) small Surface-Mounted Device (SMD) plastic package.

2.

Features

  • Total power dissipation: ≤ 350 mW.
  • Approximately 5% VZ tolerance.
  • Working voltage range: nominal 2.4 to 15 V (E24 range) 3.

📥 Download Datasheet

Datasheet preview – BZB784-C10

Datasheet Details

Part number BZB784-C10
Manufacturer nexperia
File Size 195.22 KB
Description Voltage regulator double diodes
Datasheet download datasheet BZB784-C10 Datasheet
Additional preview pages of the BZB784-C10 datasheet.

📁 Similar Datasheet

Other Datasheets by nexperia

Full PDF Text Transcription

Click to expand full text

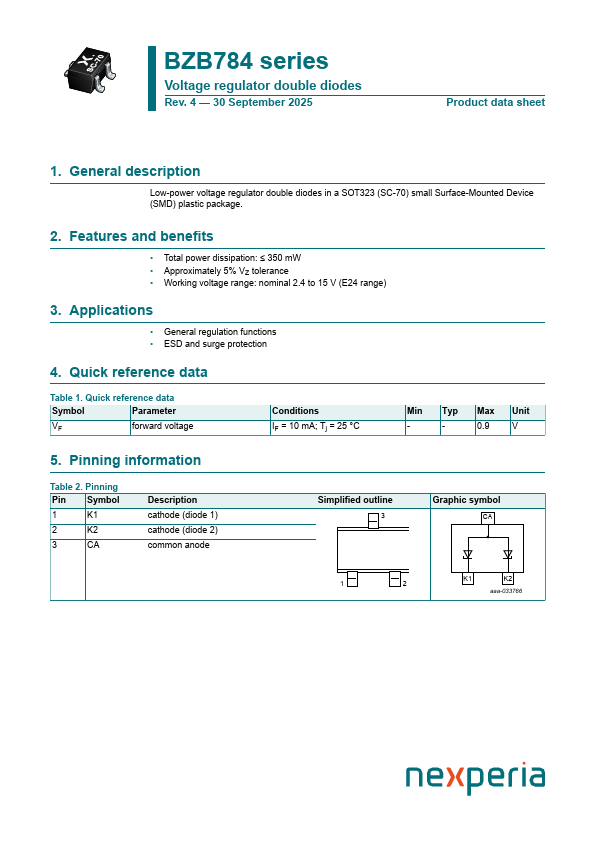

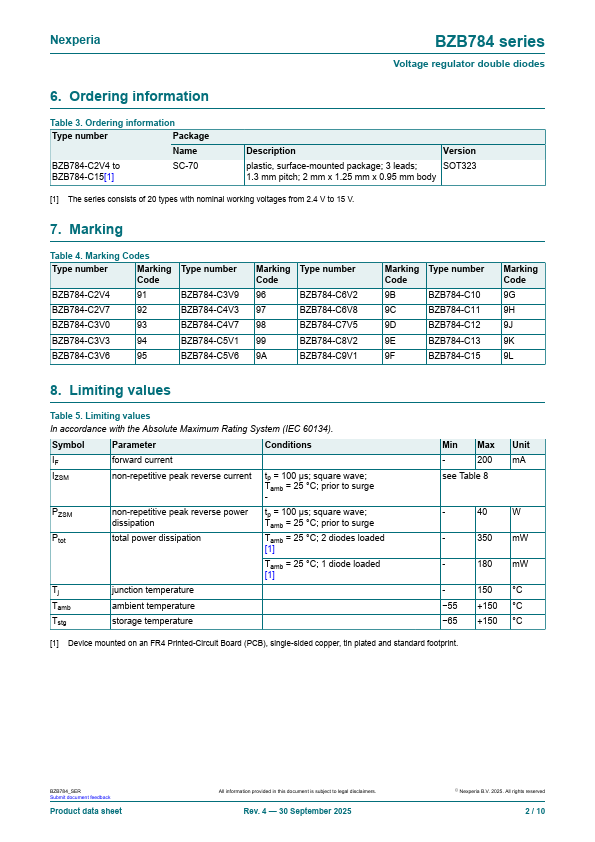

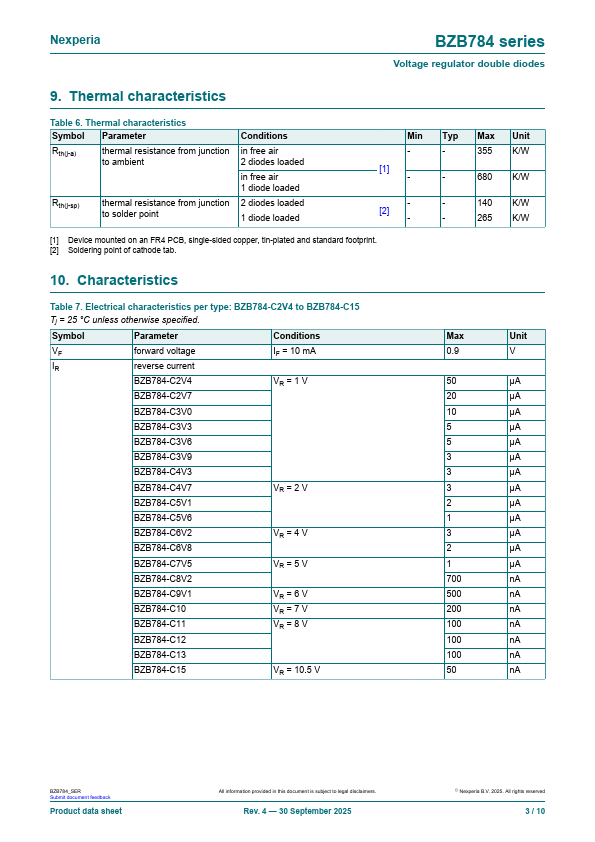

BZB784 series Voltage regulator double diodes Rev. 4 — 30 September 2025 Product data sheet 1. General description Low-power voltage regulator double diodes in a SOT323 (SC-70) small Surface-Mounted Device (SMD) plastic package. 2. Features and benefits • Total power dissipation: ≤ 350 mW • Approximately 5% VZ tolerance • Working voltage range: nominal 2.4 to 15 V (E24 range) 3. Applications • General regulation functions • ESD and surge protection 4. Quick reference data Table 1. Quick reference data Symbol Parameter VF forward voltage Conditions IF = 10 mA; Tj = 25 °C Min Typ Max Unit - - 0.9 V 5. Pinning information Table 2.
