BZB784-C11, BZB784 Voltage regulator double diodes

BZB784-C11 Description

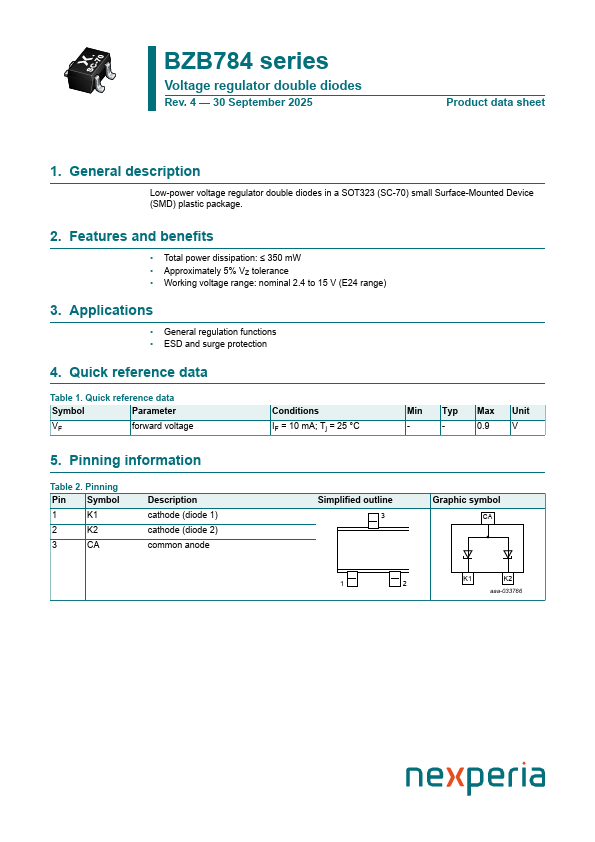

BZB784 series Voltage regulator double diodes Rev.4 * 30 September 2025 Product data sheet 1.General .
Low-power voltage regulator double diodes in a SOT323 (SC-70) small Surface-Mounted Device (SMD) plastic package.

BZB784-C11 Features

* Total power dissipation: ≤ 350 mW
* Approximately 5% VZ tolerance

BZB784-C11 Applications

* General regulation functions
* ESD and surge protection 4. Quick reference data Table 1. Quick reference data Symbol Parameter VF forward voltage Conditions IF = 10 mA; Tj = 25 °C Min Typ Max Unit - - 0.9 V 5. Pinning information Table 2. Pinning Pin Symbol 1 K1 2

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BZB784-C11, BZB784. Please refer to the document for exact specifications by model.

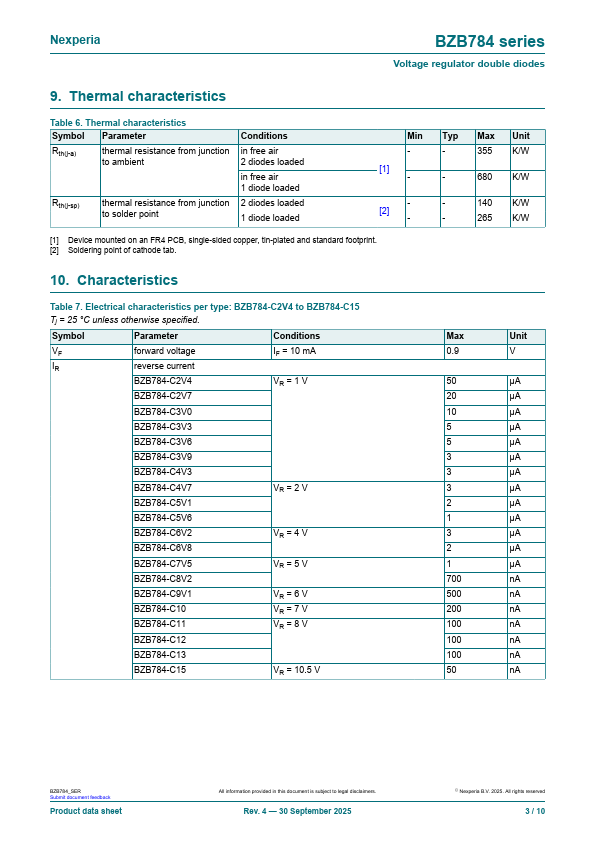

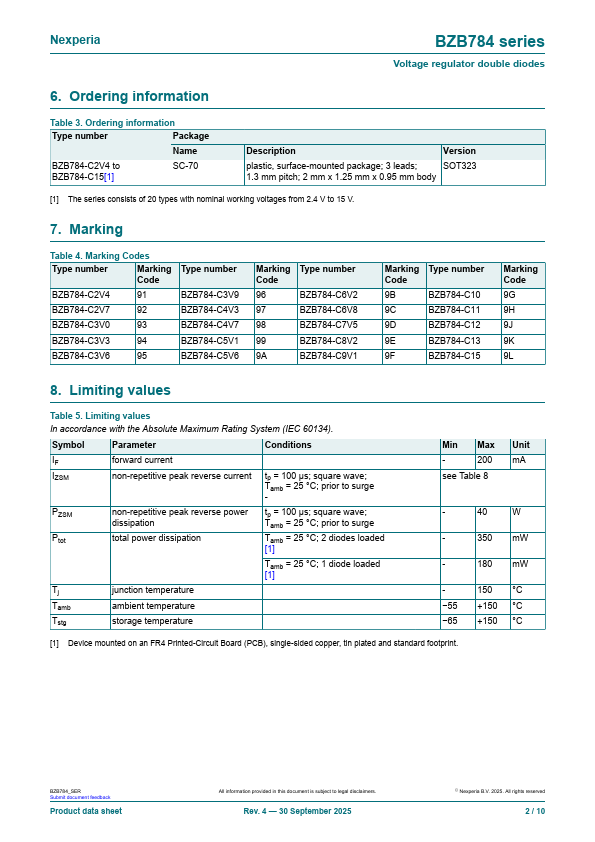

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BZB784-C11, BZB784
Manufacturer
nexperia ↗
File Size
195.22 KB
Datasheet
BZB784-nexperia.pdf
Description
Voltage regulator double diodes
Note
This datasheet PDF includes multiple part numbers: BZB784-C11, BZB784.
Please refer to the document for exact specifications by model.
