BZT52H-A2V4-Q, Voltage regulator diodes

BZT52H-Q series Voltage regulator diodes Rev.1 * 4 October 2021 Product data sheet 1.General .
General-purpose Zener diodes in an SOD123F small and flat lead Surface-Mounted Device (SMD) plastic package. Total.

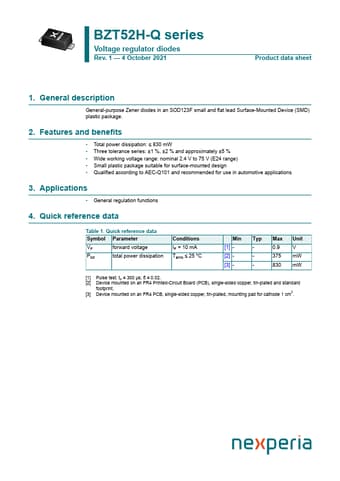

datasheet Preview Page 1 from Datasheet4u.com

BZT52H-A2V4-Q-nexperia.pdf

BZT52H-A2V4-Q Datasheet Preview — Preview of BZT52H-A2V4-Q PDF

Datasheet Details

Part number:

BZT52H-A2V4-Q

Manufacturer:

nexperia ↗

File Size:

309.34 KB

Description:

Voltage regulator diodes

Features

* Total power dissipation: ≤ 830 mW
* Three tolerance series: ±1 %, ±2 % and approximately ±5 %
* Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
* Small plastic package suitable for surface-mounted design
* Qualified according to AEC-Q101 and re

Applications

* 3. Applications
* General regulation functions 4. Quick reference data Table 1. Quick reference data Symbol Parameter VF forward voltage Ptot total power dissipation Conditions IF = 10 mA Tamb ≤ 25 °C Min Typ Max Unit [1] - - 0.9 V [2] - - 375 mW [3] - - 830 mW [1] Pulse t
