BZX84J-B3V6 Datasheet, Diodes, nexperia

BZX84J-B3V6 Features

• Diodes

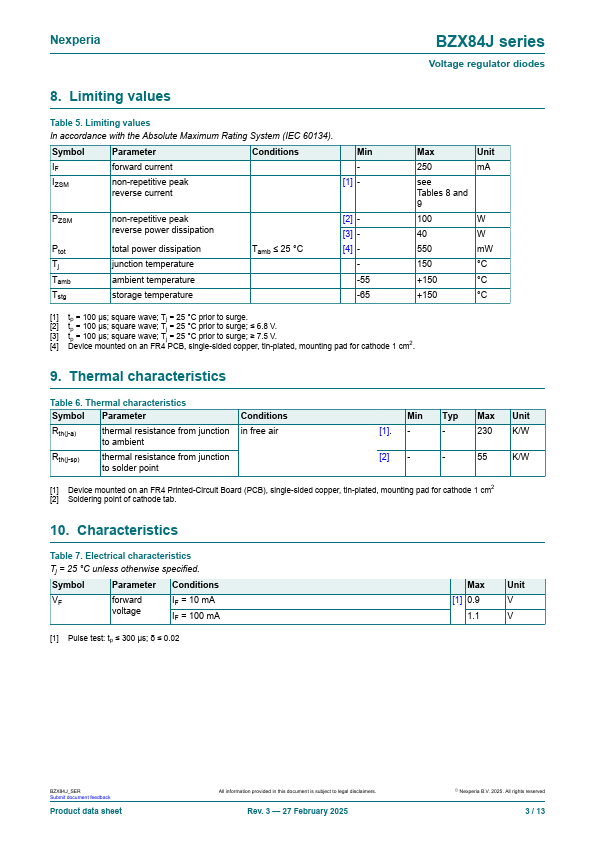

• Non-repetitive peak reverse power dissipation:  40 W
• Total power dissipation:  550 mW
• AEC-Q101 qualified
• Small plastic package suitable for sur

PDF File Details

Part number:

BZX84J-B3V6

Manufacturer:

nexperia ↗

File Size:

664.94kb

Download:

📄 Datasheet

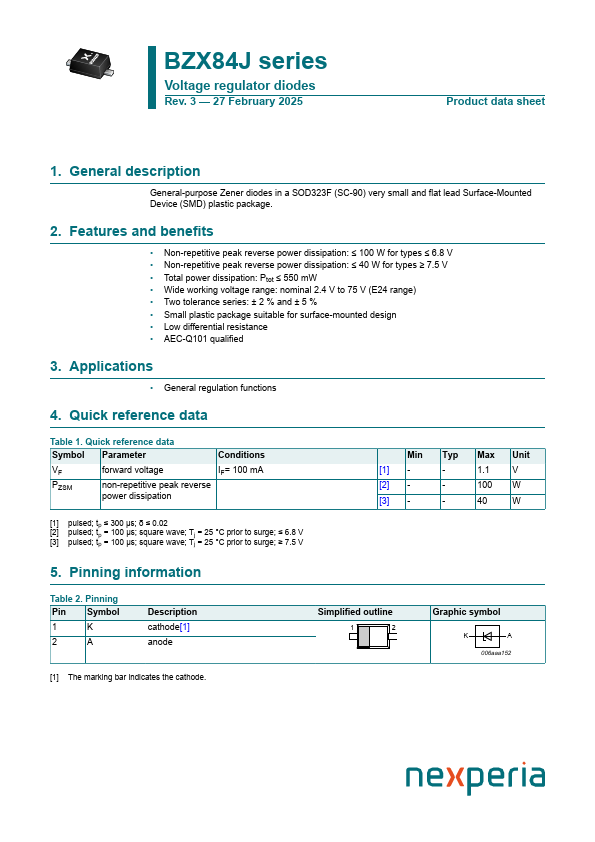

Description:

Single zener diodes. General-purpose Zener diodes in a SOD323F (SC-90) very small and flat lead Surface-Mounted Device (SMD) plastic package. 1.2 Feature

BZX84J-B3V6 Application

• Applications
• General regulation functions 1.4 Quick reference data Table 1. Symbol VF PZSM Quick reference data Parameter forward volta
