Datasheet Details
Part number:
BZX84J-C18, BZX84J
Manufacturer:
File Size:
305.04 KB
Description:
Voltage regulator diodes
Note:
This datasheet PDF includes multiple part numbers: BZX84J-C18, BZX84J.
Please refer to the document for exact specifications by model.

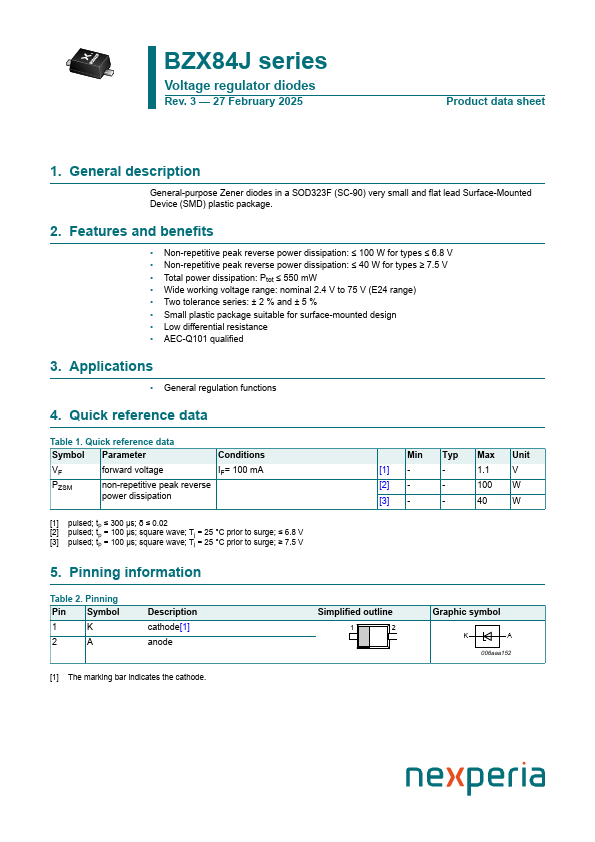

Features
* Non-repetitive peak reverse power dissipation: ≤ 100 W for types ≤ 6.8 V
* Non-repetitive peak reverse power dissipation: ≤ 40 W for types ≥ 7.5 V
* Total power dissipation: Ptot ≤ 550 mW
* Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
* Two
