BZX84J-C39, BZX84J Voltage regulator diodes

BZX84J-C39 Description

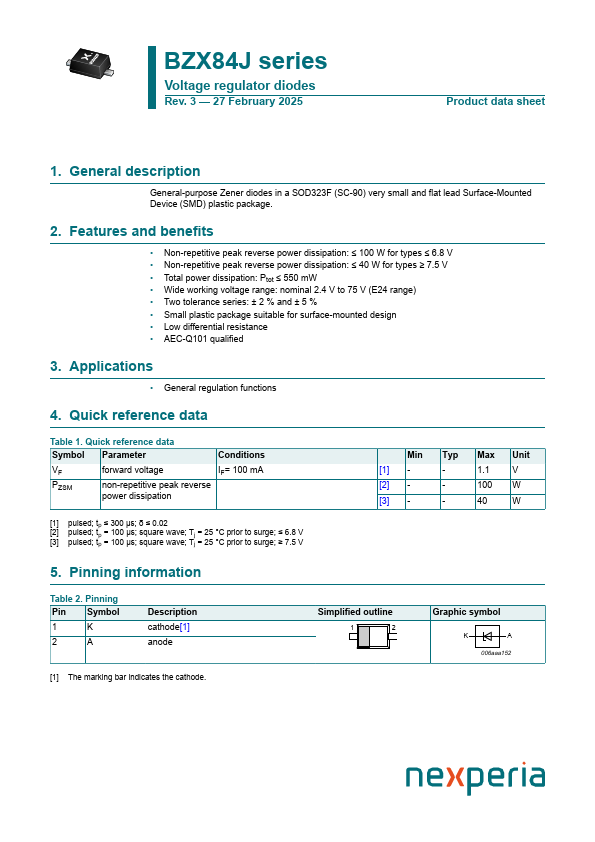

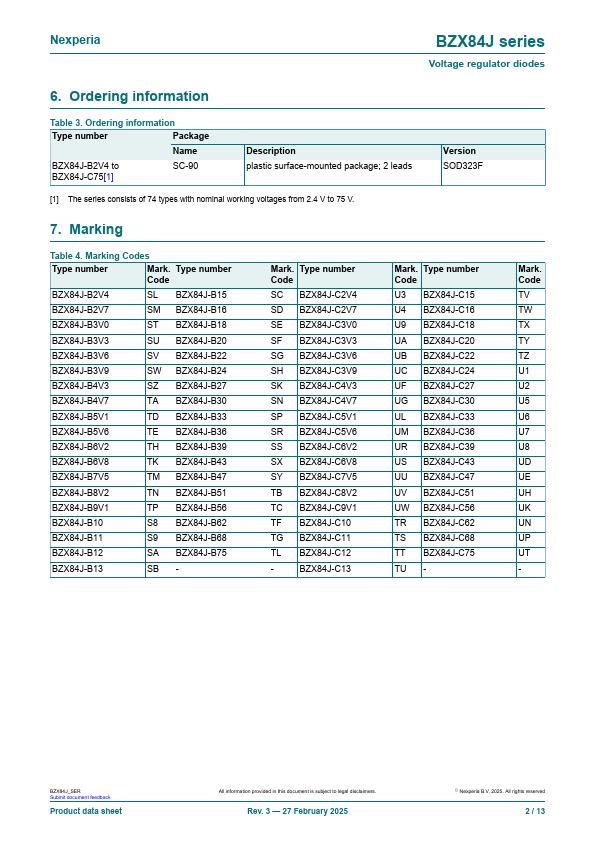

BZX84J series Voltage regulator diodes Rev.3 * 27 February 2025 Product data sheet 1.General .
General-purpose Zener diodes in a SOD323F (SC-90) very small and flat lead Surface-Mounted Device (SMD) plastic package.

BZX84J-C39 Features

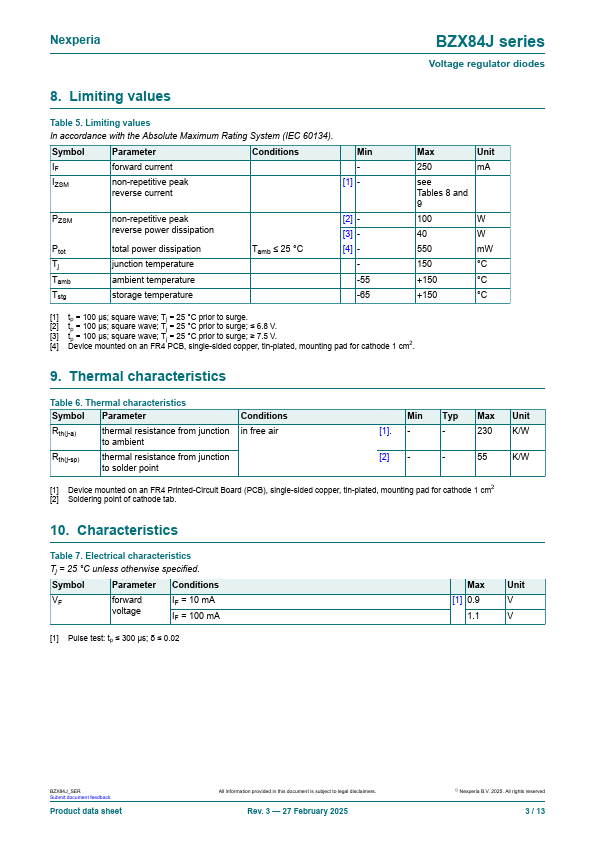

* Non-repetitive peak reverse power dissipation: ≤ 100 W for types ≤ 6.8 V
* Non-repetitive peak reverse power dissipation: ≤ 40 W for types ≥ 7.5 V
* Total power dissipation: Ptot ≤ 550 mW
* Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
* Two

BZX84J-C39 Applications

* General regulation functions 4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions VF forward voltage IF= 100 mA PZSM non-repetitive peak reverse power dissipation [1] pulsed; tp ≤ 300 μs; δ ≤ 0.02 [2] pulsed; tp = 100 μs; square wave; Tj = 25 °C prior
