BZX884-B12, BZX884 Voltage regulator diodes

BZX884-B12 Description

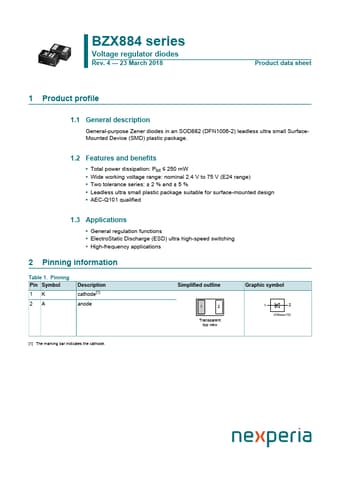

BZX884 series Voltage regulator diodes Rev.4 * 23 March 2018 Product data sheet 1 Product profile 1.1 General .
General-purpose Zener diodes in an SOD882 (DFN1006-2) leadless ultra small SurfaceMounted Device (SMD) plastic package.

BZX884-B12 Features

* Total power dissipation: Ptot ≤ 250 mW
* Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
* Two tolerance series: ± 2 % and ± 5 %
* Leadless ultra small plastic package suitable for surface-mounted design

BZX884-B12 Applications

* General regulation functions
* ElectroStatic Discharge (ESD) ultra high-speed switching

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BZX884-B12, BZX884. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BZX884-B12, BZX884
Manufacturer
nexperia ↗
File Size
169.66 KB
Datasheet
BZX884-nexperia.pdf
Description
Voltage regulator diodes
Note
This datasheet PDF includes multiple part numbers: BZX884-B12, BZX884.
Please refer to the document for exact specifications by model.
