HEF4081BT, HEF4081B - Quad 2-input AND gate

nexperia

📥 Download Datasheet

HEF4081BT Datasheet Preview — This datasheet PDF includes multiple part numbers: HEF4081BT, HEF4081B. Please refer to the document for exact specifications by model.

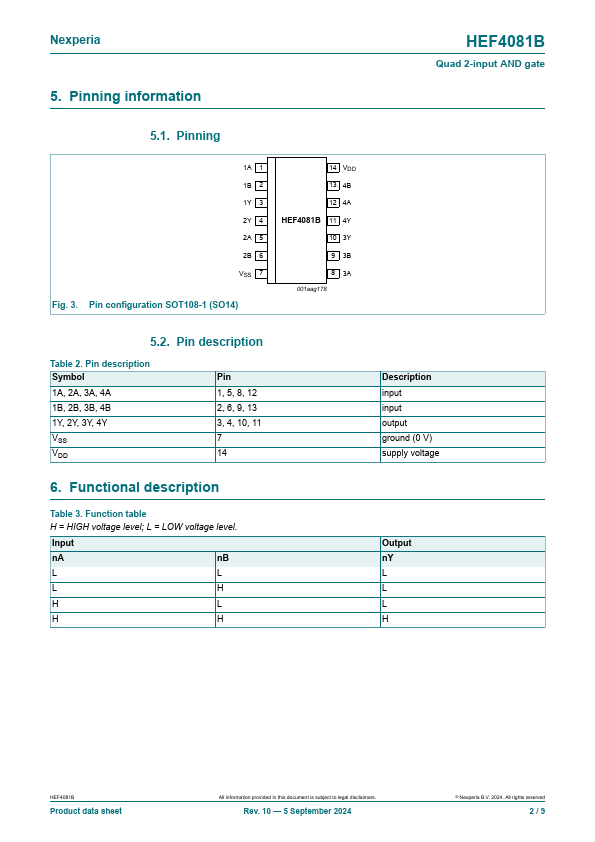

datasheet Preview Page 2

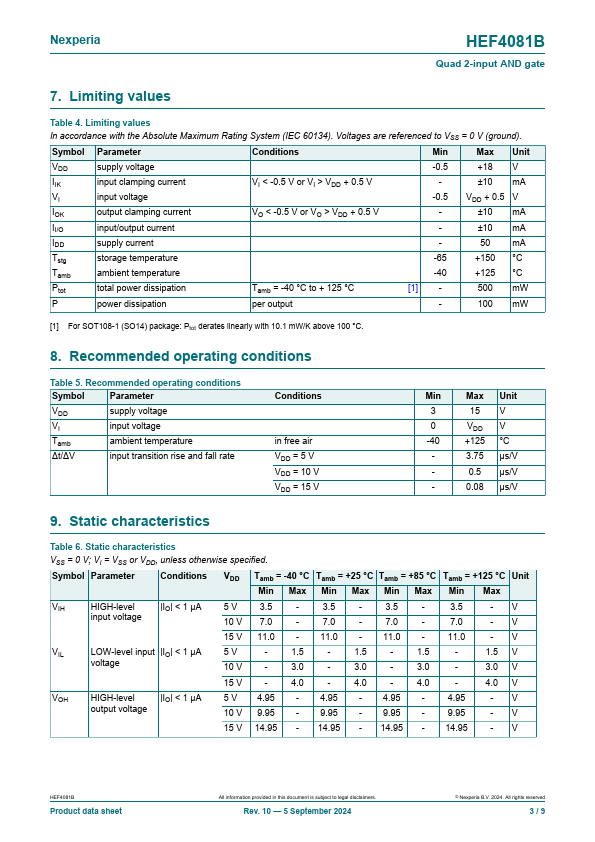

datasheet Preview Page 3

Datasheet Details

Part number	HEF4081BT, HEF4081B
Manufacturer	nexperia
File Size	195.39 KB
Description	Quad 2-input AND gate
Datasheet	HEF4081B-nexperia.pdf
Note	This datasheet PDF includes multiple part numbers: HEF4081BT, HEF4081B. Please refer to the document for exact specifications by model.

HEF4081BT Product details

Description

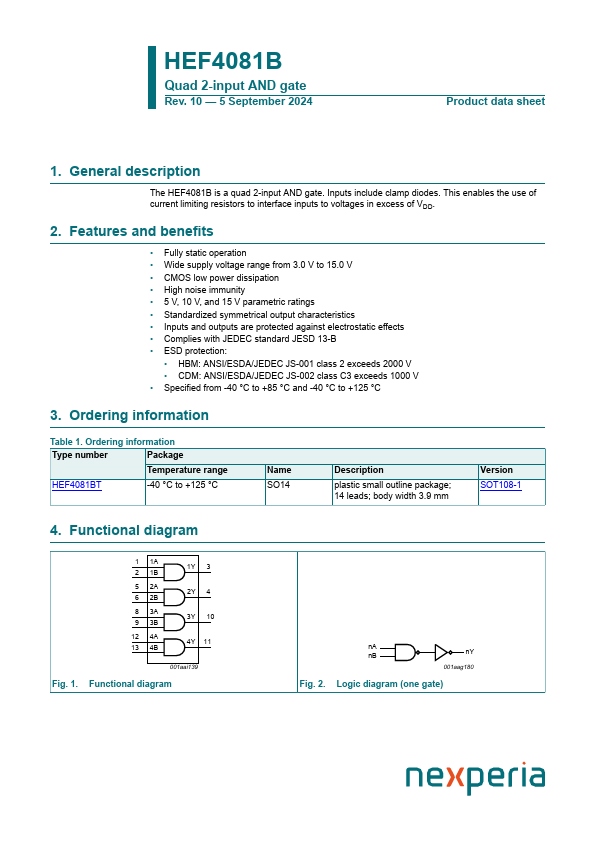

The HEF4081B is a quad 2-input AND gate.

Features

Fully static operation.
Wide supply voltage range from 3.0 V to 15.0 V.
CMOS low power dissipation.
High noise immunity.
5 V, 10 V, and 15 V parametric ratings.
Standardized symmetrical output characteristics.
Inputs and outputs are protected against electrostatic effects.
Complies with JEDEC standard JESD 13-B.
ESD protection:.
HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V.
CDM: ANSI/ESDA/JE.
