NGD31251 28V 5A dual channel non-isolation gate driver

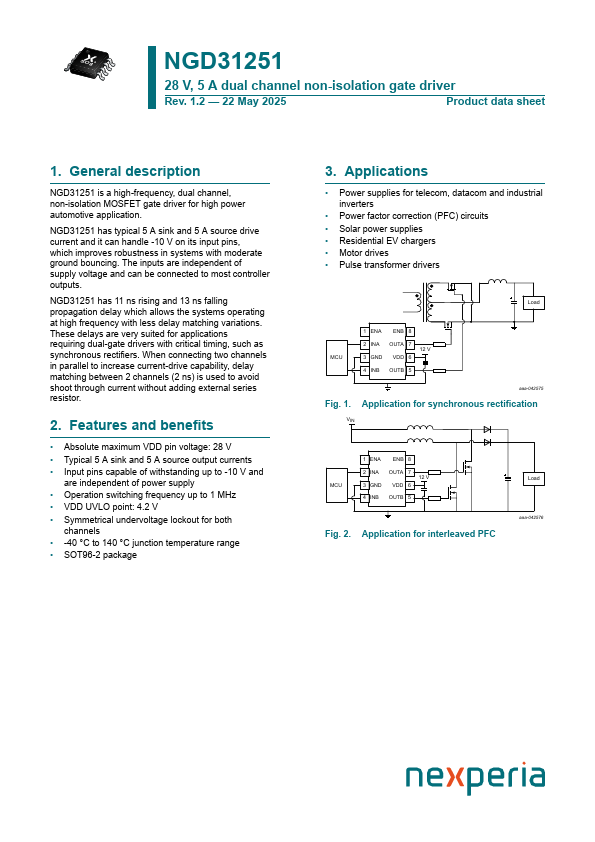

📥 Download Datasheet  Datasheet Preview Page 1

Description

SO8 NGD31251 28 V, 5 A dual channel non-isolation gate driver Rev.1.2 * 22 May 2025 Product data sheet 1.General .
NGD31251 is a high-frequency, dual channel, non-isolation MOSFET gate driver for high power automotive application.

📥 Download Datasheet

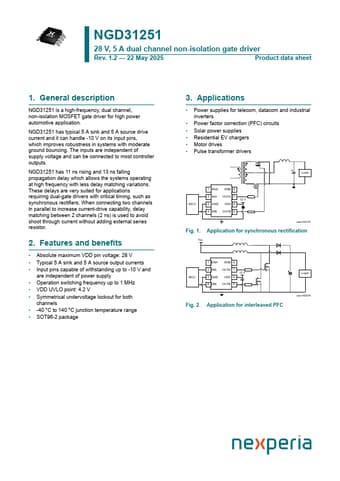

Preview of NGD31251 PDF

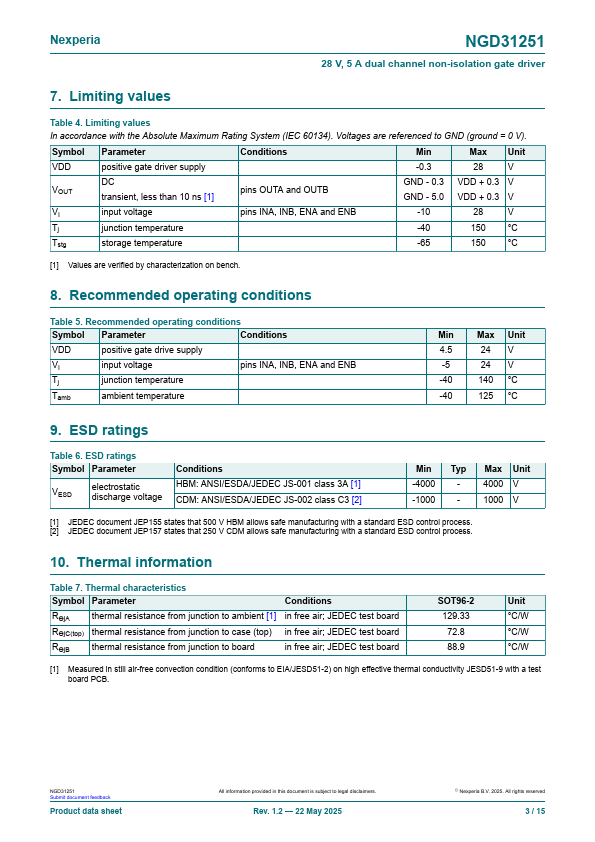

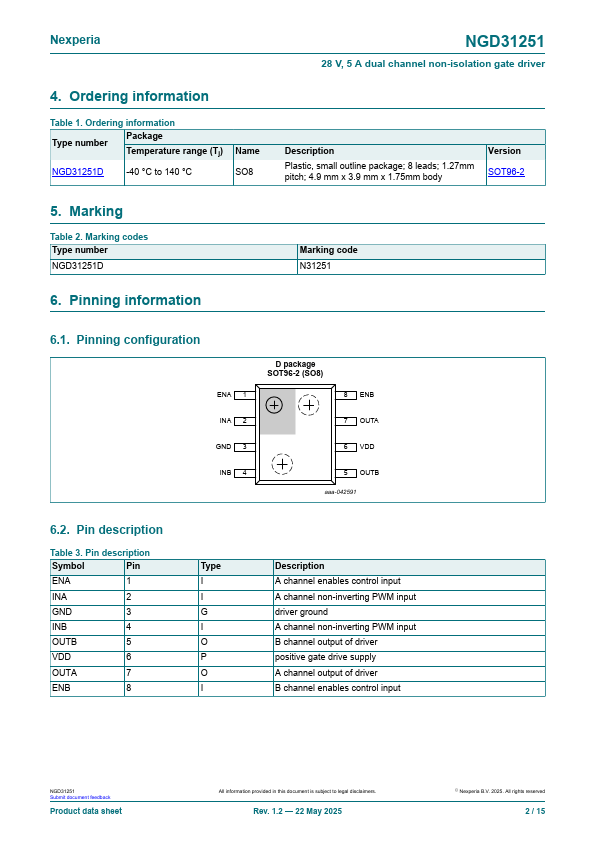

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
NGD31251
Manufacturer
nexperia ↗
File Size
257.07 KB
Datasheet
NGD31251-nexperia.pdf
Description
28V 5A dual channel non-isolation gate driver

Features

* Absolute maximum VDD pin voltage: 28 V
* Typical 5 A sink and 5 A source output currents
* Input pins capable of withstanding up to -10 V and are independent of power supply
* Operation switching frequency up to 1 MHz
* VDD UVLO point: 4.2 V
* Symmet
