NMUX1308A 8-channel analog switch multiplexer and demultiplexer

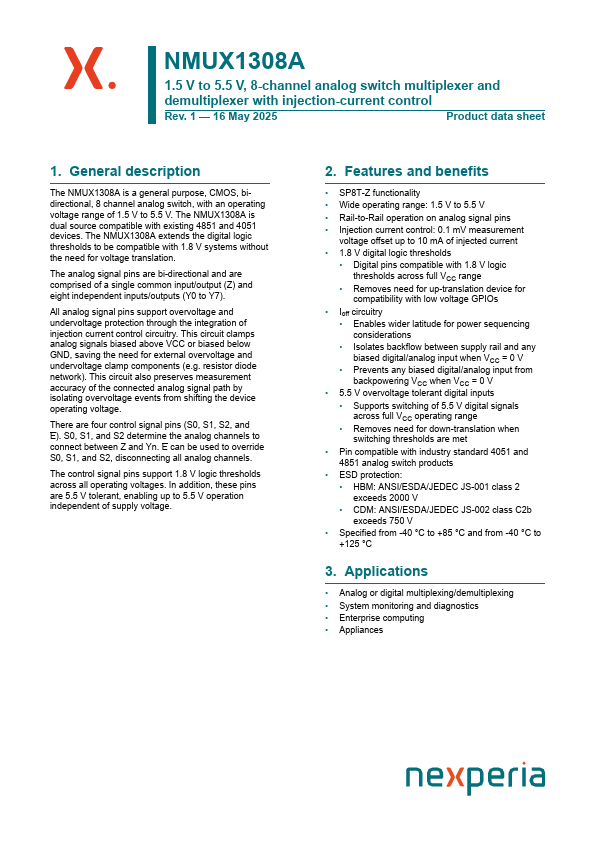

📥 Download Datasheet  Datasheet Preview Page 1

Description

NMUX1308A 1.5 V to 5.5 V, 8-channel analog switch multiplexer and demultiplexer with injection-current control Rev.1 * 16 May 2025 Produc.
The NMUX1308A is a general purpose, CMOS, bidirectional, 8 channel analog switch, with an operating voltage range of 1.

📥 Download Datasheet

Preview of NMUX1308A PDF

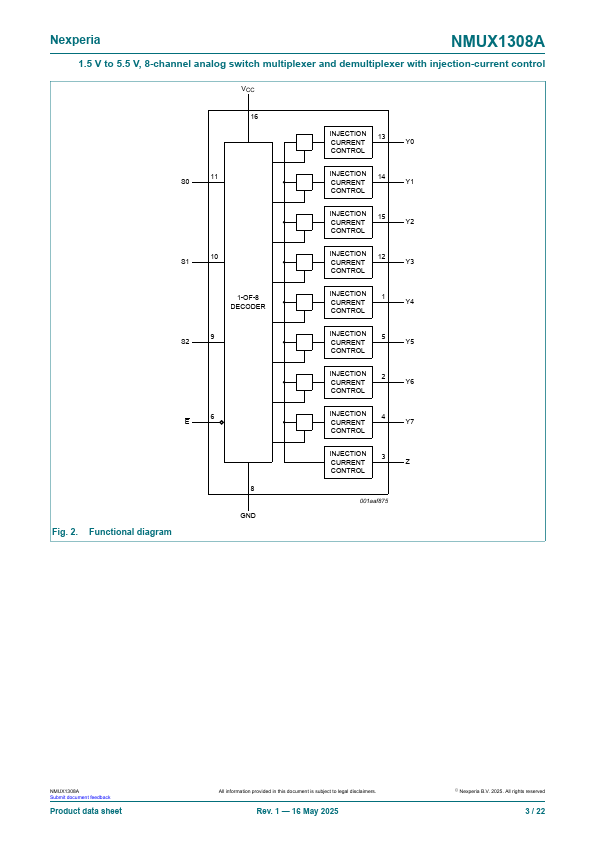

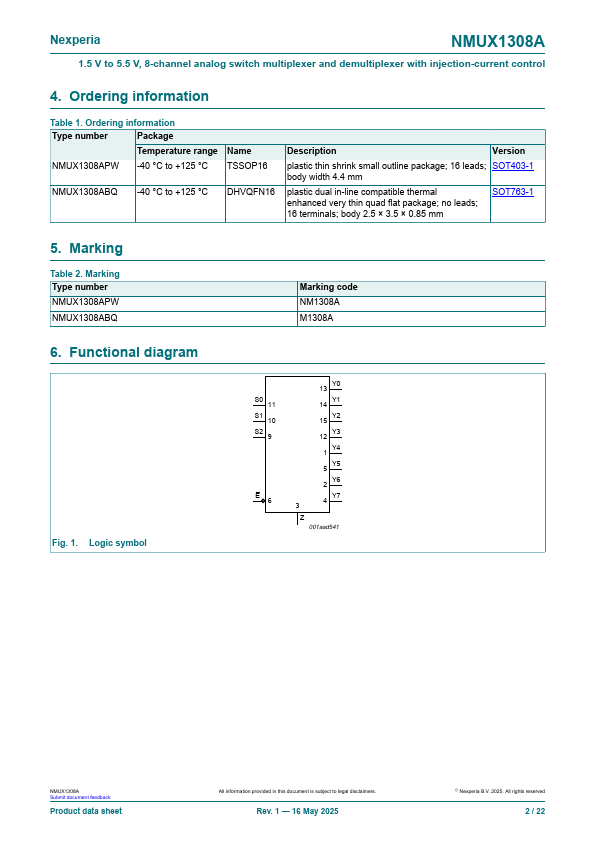

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
NMUX1308A
Manufacturer
nexperia ↗
File Size
325.33 KB
Datasheet
NMUX1308A-nexperia.pdf
Description
8-channel analog switch multiplexer and demultiplexer

Features

* SP8T-Z functionality
* Wide operating range: 1.5 V to 5.5 V
* Rail-to-Rail operation on analog signal pins
* Injection current control: 0.1 mV measurement voltage offset up to 10 mA of injected current
* 1.8 V digital logic thresholds
* Digital pins

Applications

* Analog or digital multiplexing/demultiplexing
* System monitoring and diagnostics
* Enterprise computing
* Appliances Nexperia NMUX1308A 1.5 V to 5.5 V, 8-channel analog switch multiplexer and demultiplexer with injection-current control 4. Ordering information
