NMUX1308A-Q100 8-channel analog switch multiplexer and demultiplexer

nexperia

Description

NMUX1308A-Q100 1.5 V to 5.5 V, 8-channel analog switch multiplexer and demultiplexer with injection-current control Rev.1 * 16 May 2025 P.
The NMUX1308A-Q100 is a general purpose, CMOS, bi-directional, 8 channel analog switch, with an operating voltage range of 1.

📥 Download Datasheet

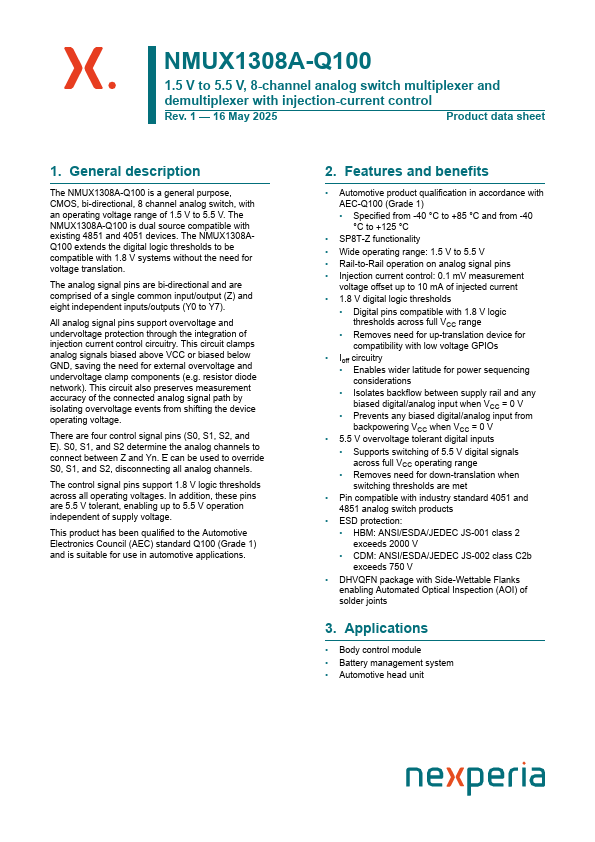

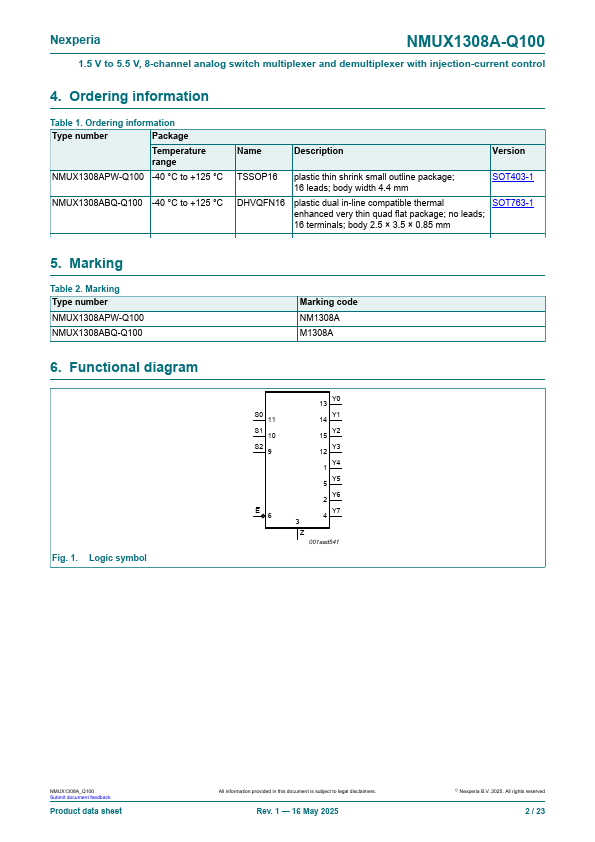

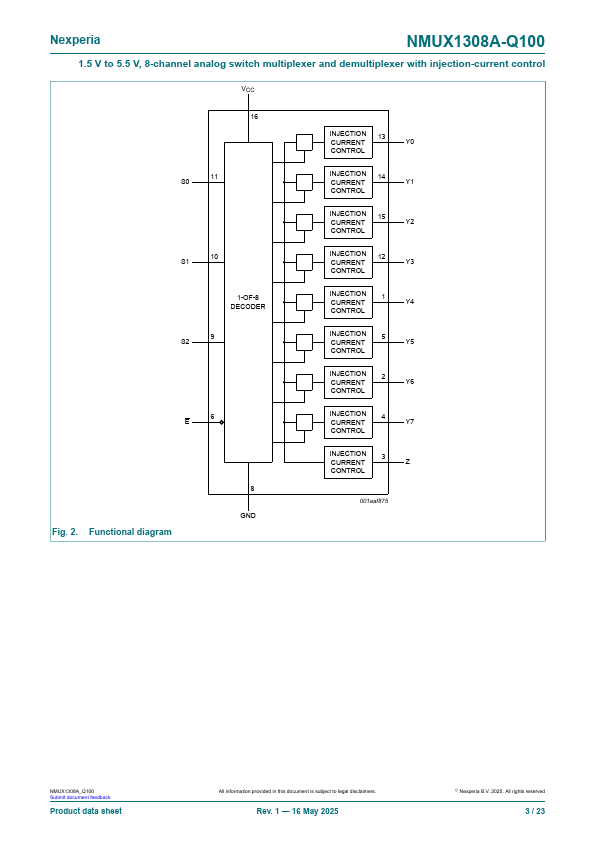

NMUX1308A-Q100 Datasheet Preview — Preview of NMUX1308A-Q100 PDF

Datasheet Specifications

Part number: NMUX1308A-Q100
Manufacturer: nexperia ↗
File Size: 327.54 KB
Datasheet: NMUX1308A-Q100-nexperia.pdf
Description: 8-channel analog switch multiplexer and demultiplexer

Features

* Automotive product qualification in accordance with AEC-Q100 (Grade 1)
* Specified from -40 °C to +85 °C and from -40 °C to +125 °C
* SP8T-Z functionality
* Wide operating range: 1.5 V to 5.5 V
* Rail-to-Rail operation on analog signal pins
* Injecti
