NMUX27518E-Q100 - 6-channel 1-of-2 multiplexer and demultiplexer

nexperia

📥 Download Datasheet

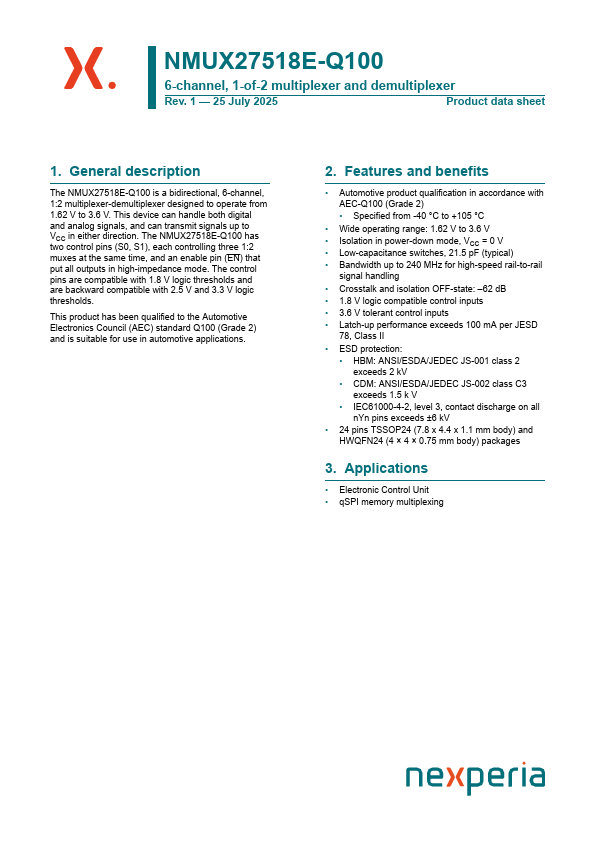

NMUX27518E-Q100 Datasheet Preview — Preview of NMUX27518E-Q100 PDF

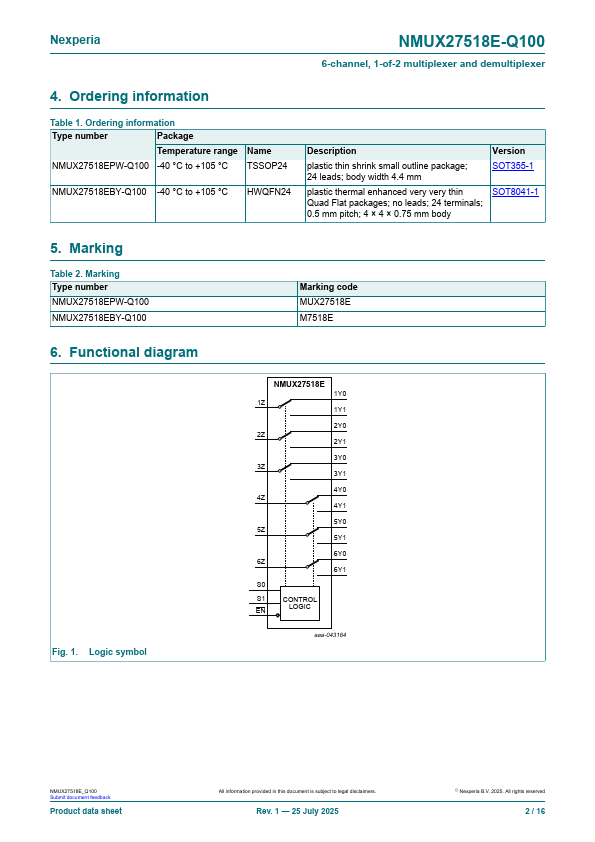

datasheet Preview Page 2

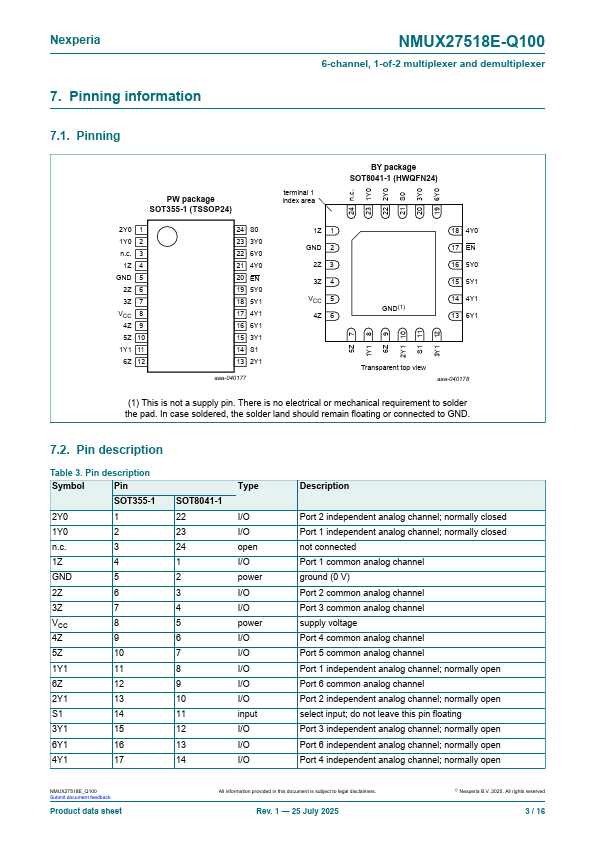

datasheet Preview Page 3

Datasheet Details

Part number	NMUX27518E-Q100
Manufacturer	nexperia ↗
File Size	326.01 KB
Description	6-channel 1-of-2 multiplexer and demultiplexer
Datasheet	NMUX27518E-Q100-nexperia.pdf

NMUX27518E-Q100 Product details

Description

The NMUX27518E-Q100 is a bidirectional, 6-channel, 1:2 multiplexer-demultiplexer designed to operate from 1.62 V to 3.6 V.

Features

Automotive product qualification in accordance with AEC-Q100 (Grade 2).
Specified from -40 °C to +105 °C.
Wide operating range: 1.62 V to 3.6 V.
Isolation in power-down mode, VCC = 0 V.
Low-capacitance switches, 21.5 pF (typical).
Bandwidth up to 240 MHz for high-speed rail-to-rail signal handling.
Crosstalk and isolation OFF-state:.
62 dB.
1.8 V logic compatible control inputs.
3.6 V tolerant control input.
