NPS4001 Datasheet - nexperia

NPS4001 load switch

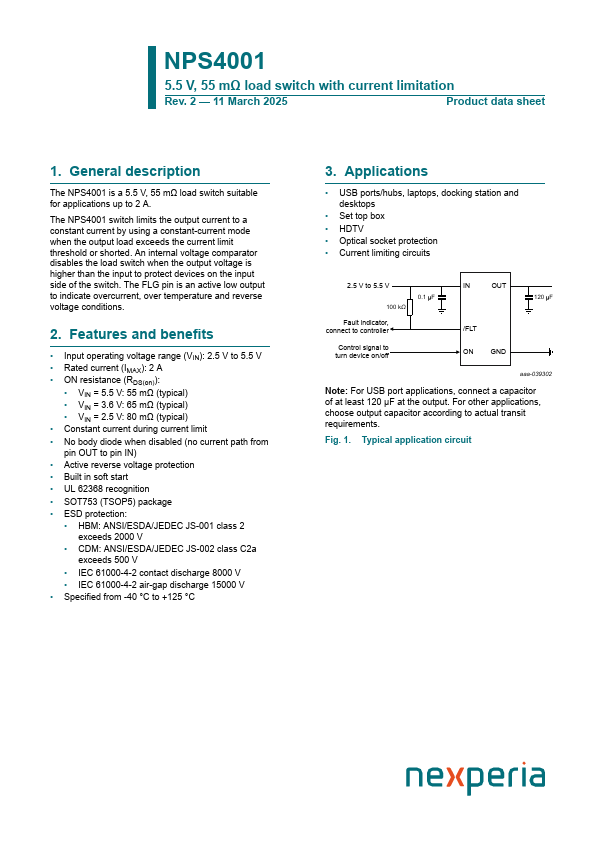

The NPS4001 is a 5.5 V, 55 mΩ load switch suitable for applications up to 2 A. The NPS4001 switch limits the output current to a constant current by using a constant-current mode when the output load exceeds the current limit threshold or shorted. An internal voltage comparator disables the load swi.

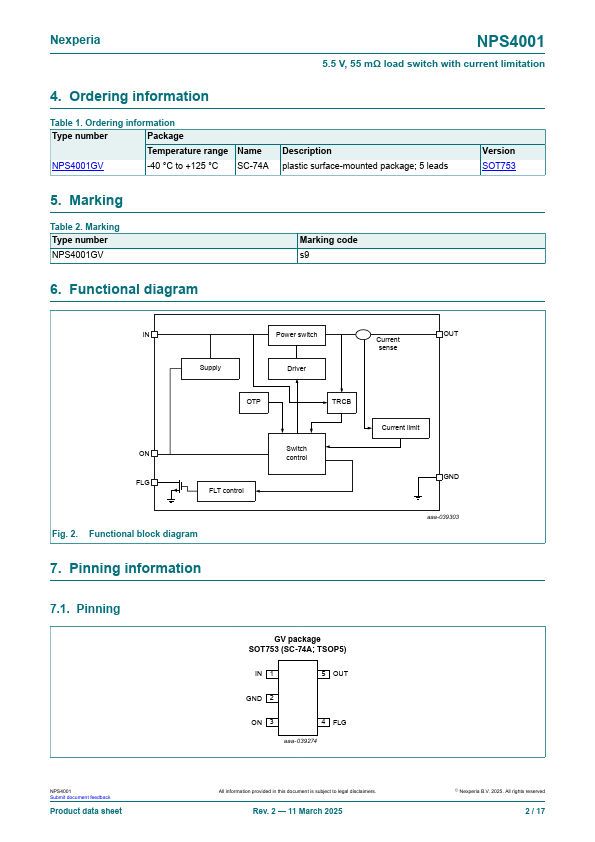

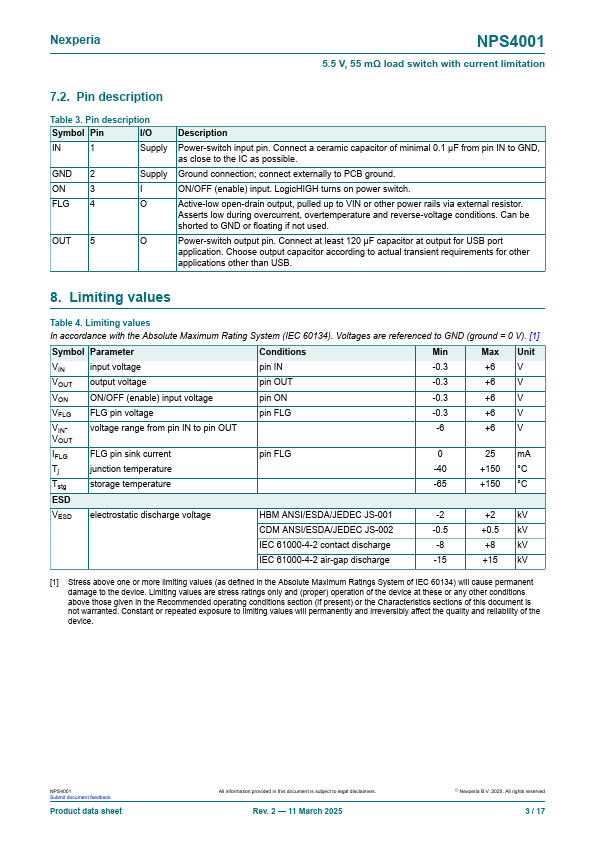

NPS4001 Features

* Input operating voltage range (VIN): 2.5 V to 5.5 V

* Rated current (IMAX): 2 A

* ON resistance (RDS(on)):

* VIN = 5.5 V: 55 mΩ (typical)

* VIN = 3.6 V: 65 mΩ (typical)

* VIN = 2.5 V: 80 mΩ (typical)

* Constant current during current limit
