NXB0104PW-Q100, NXB0104-Q100 - Dual supply translating transceiver

nexperia

📥 Download Datasheet

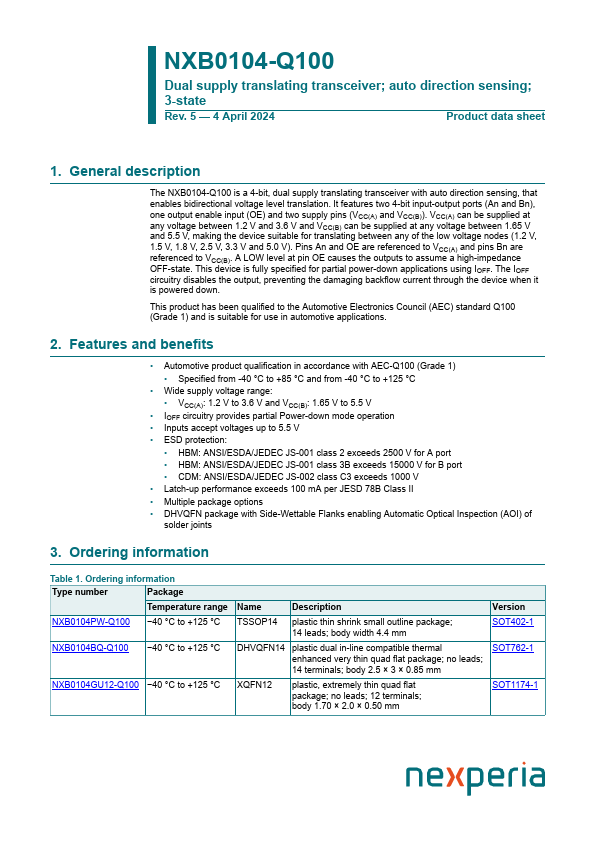

NXB0104PW-Q100 Datasheet Preview — This datasheet PDF includes multiple part numbers: NXB0104PW-Q100, NXB0104-Q100. Please refer to the document for exact specifications by model.

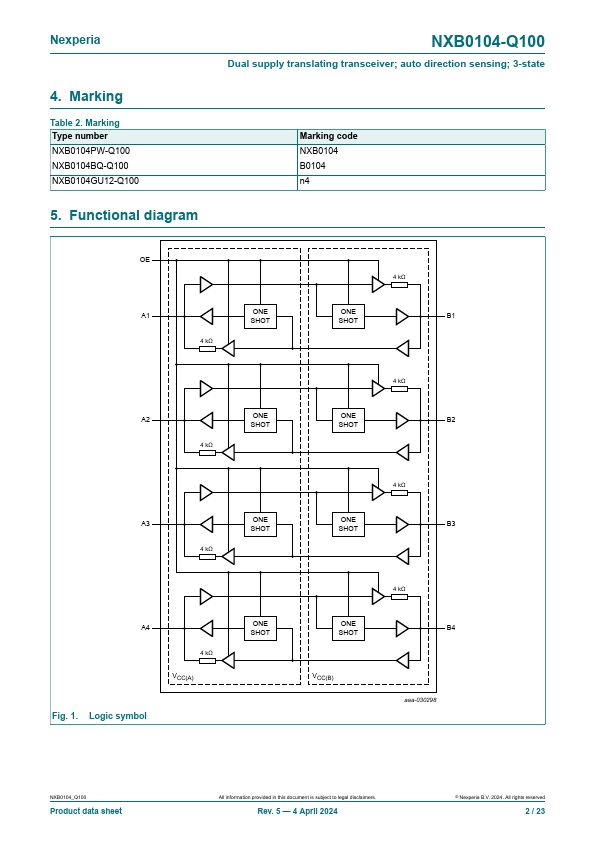

datasheet Preview Page 2

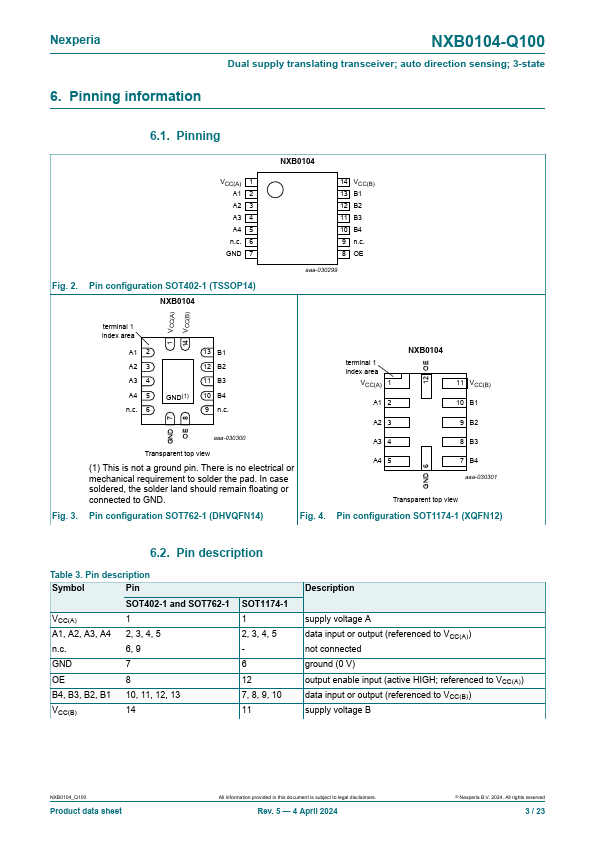

datasheet Preview Page 3

Datasheet Details

Part number	NXB0104PW-Q100, NXB0104-Q100
Manufacturer	nexperia ↗
File Size	354.13 KB
Description	Dual supply translating transceiver
Datasheet	NXB0104-Q100-nexperia.pdf
Note	This datasheet PDF includes multiple part numbers: NXB0104PW-Q100, NXB0104-Q100. Please refer to the document for exact specifications by model.

NXB0104PW-Q100 Product details

Description

The NXB0104-Q100 is a 4-bit, dual supply translating transceiver with auto direction sensing, that enables bidirectional voltage level translation.

Features

Automotive product qualification in accordance with AEC-Q100 (Grade 1).
Specified from -40 °C to +85 °C and from -40 °C to +125 °C.
Wide supply voltage range:.
VCC(A): 1.2 V to 3.6 V and VCC(B): 1.65 V to 5.5 V.
IOFF circuitry provides partial Power-down mode operation.
Inputs accept voltages up to 5.5 V.
ESD protection:.
HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2500 V for A port.
HBM: ANSI/ESDA/JEDEC JS-001 cla.
