NZH3V0B Single Zener diodes

nexperia

Description

NZH series Single Zener diodes Rev.2 * 15 May 2024 Product data sheet 1.General .
General-purpose Zener diodes in a SOD123F small and flat lead Surface-Mounted Device (SMD) plastic package. Total.

📥 Download Datasheet

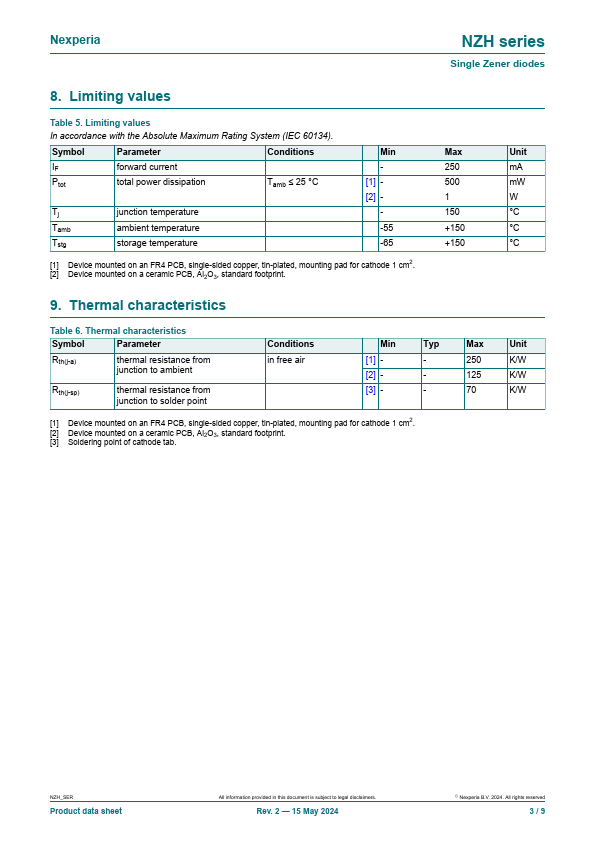

NZH3V0B Datasheet Preview — Preview of NZH3V0B PDF

Datasheet Specifications

Part number: NZH3V0B
Manufacturer: nexperia ↗
File Size: 183.35 KB
Datasheet: NZH3V0B-nexperia.pdf
Description: Single Zener diodes

Features

* Total power dissipation: ≤ 500 mW
* Wide working voltage range
* Small plastic package suitable for surface-mounted design
* Low differential resistance

Applications

* General regulation functions 4. Quick reference data Table 1. Quick reference data Symbol Parameter VF forward voltage Ptot total power dissipation Conditions IF = 10 mA Tamb ≤ 25 °C Min Typ Max Unit [1] - - 0.9 V [2] - - 500 mW [3] - - 1 W [1] Pulse test: tp ≤ 300 μs; δ ≤ 0.02. [
