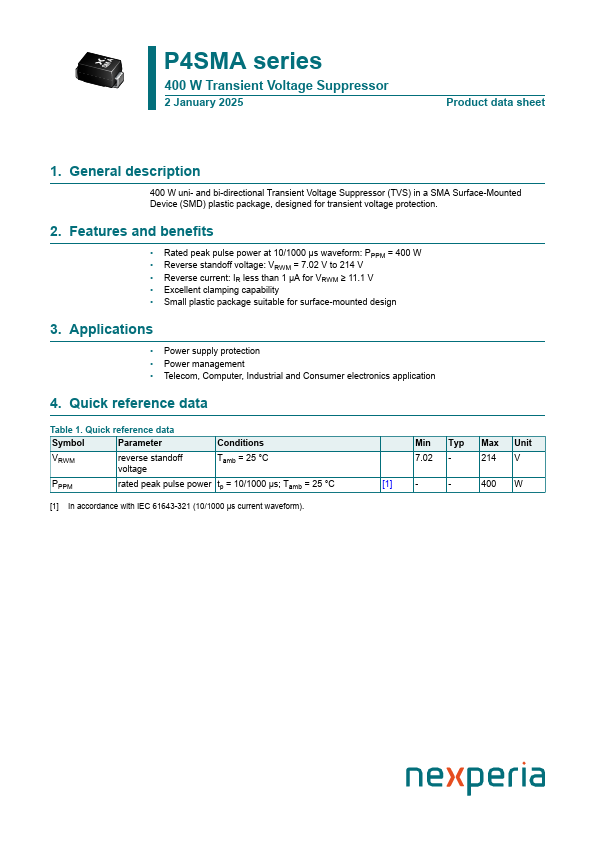

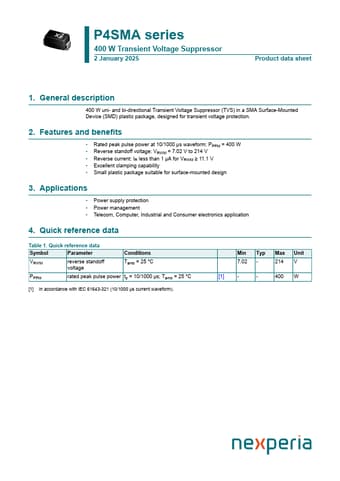

P4SMAJ150A Features
* Rated peak pulse power at 10/1000 μs waveform: PPPM = 400 W
* Reverse standoff voltage: VRWM = 7.02 V to 214 V
* Reverse current: IR less than 1 μA for VRWM ≥ 11.1 V
* Excellent clamping capability
* Small plastic package suitable for surface-mounted design
Datasheet Details
P4SMAJ150A, P4SMAJ8.2A
211.01 KB
400w transient voltage suppressor.
This datasheet PDF includes multiple part numbers: P4SMAJ150A, P4SMAJ8.2A.
Please refer to the document for exact specifications by model.
