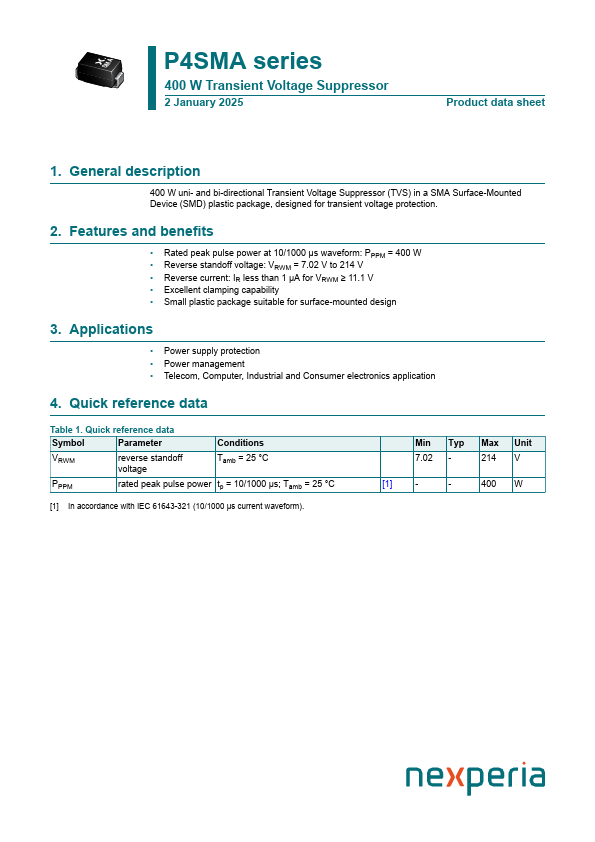

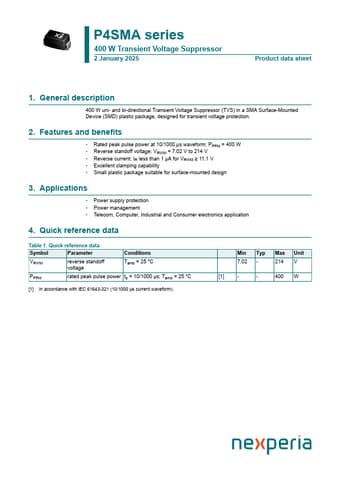

P4SMAJ43A Datasheet - nexperia

P4SMAJ43A 400W Transient Voltage Suppressor

P4SMAJ43A Features

* Rated peak pulse power at 10/1000 μs waveform: PPPM = 400 W

* Reverse standoff voltage: VRWM = 7.02 V to 214 V

* Reverse current: IR less than 1 μA for VRWM ≥ 11.1 V

* Excellent clamping capability

* Small plastic package suitable for surface-mounted design

Datasheet Details

P4SMAJ43A

211.01 KB

400w transient voltage suppressor.
