PDTC144WM-Q - 50V 100mA NPN resistor-equipped transistor

Datasheet Summary

Description

NPN Resistor-Equipped Transistor (RET) in an leadless ultra small SOT883 (SC-101) SurfaceMounted Device (SMD) plastic package.

Features

Built-in bias resistors.
Simplifies circuit design.
Reduces component count.
Reduces pick and place costs.
Qualified according to AEC-Q101 and recommended for use in automotive.

Datasheet Details

Part number	PDTC144WM-Q
Manufacturer	nexperia
File Size	193.47 KB
Description	50V 100mA NPN resistor-equipped transistor
Datasheet	PDTC144WM-Q Datasheet

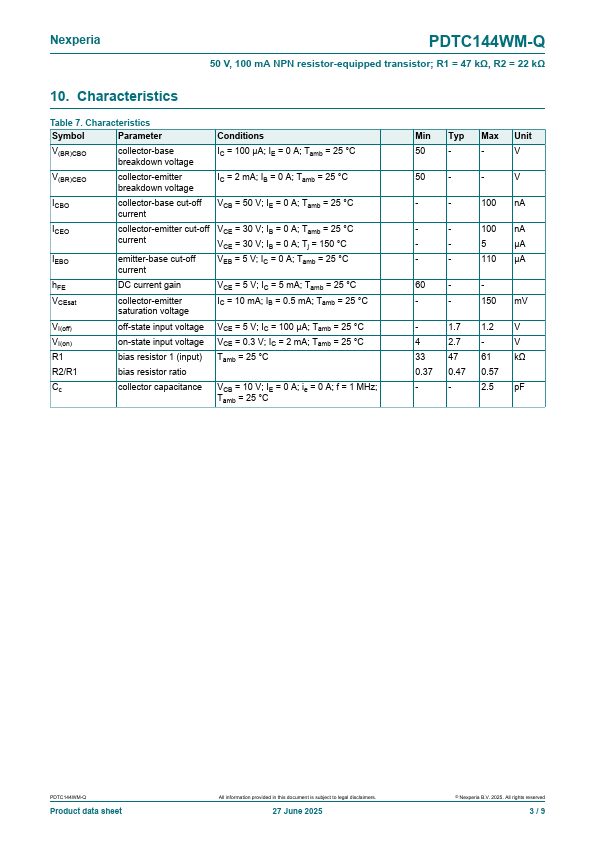

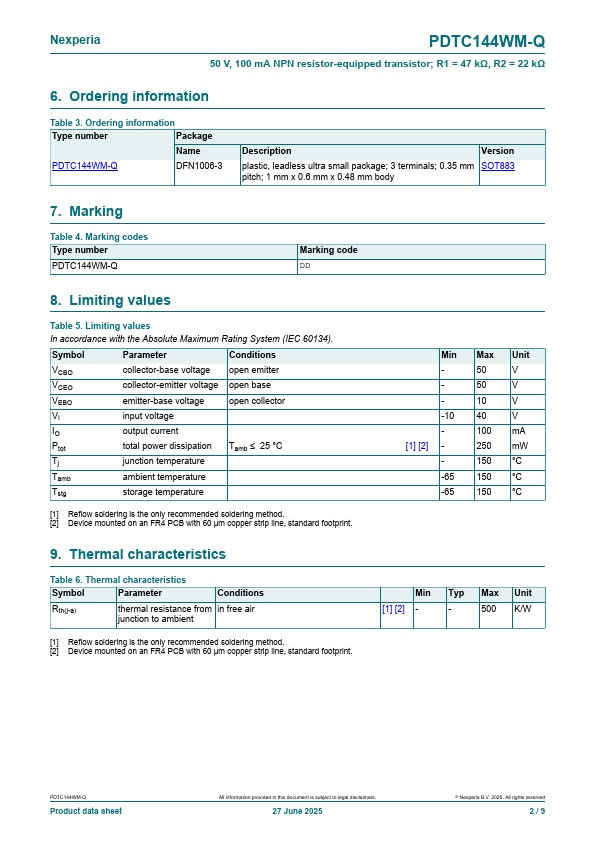

Additional preview pages of the PDTC144WM-Q datasheet.

📁 Similar Datasheet

PDTC144WMB - NPN resistor-equipped transistor (NXP)

PDTC144W - NPN resistor-equipped transistors (NXP)

PDTC144WT - NPN resistor-equipped transistor (NXP)

PDTC144WU - NPN resistor-equipped transistor (NXP)

PDTC144 - NPN resistor-equipped transistor (NXP)

PDTC144E - NPN resistor-equipped transistors (NXP)

Full PDF Text Transcription

Click to expand full text

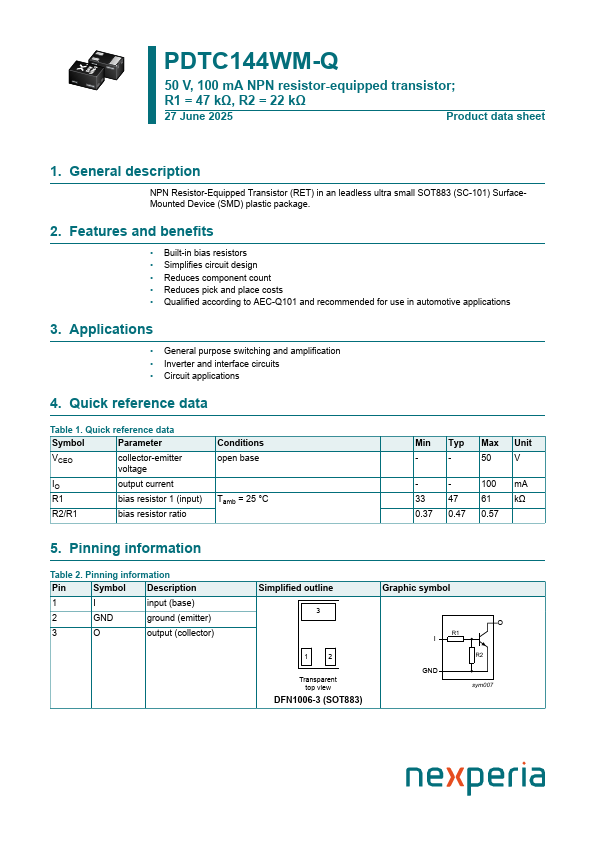

PDTC144WM-Q 50 V, 100 mA NPN resistor-equipped transistor; R1 = 47 kΩ, R2 = 22 kΩ 27 June 2025 Product data sheet 1. General description NPN Resistor-Equipped Transistor (RET) in an leadless ultra small SOT883 (SC-101) SurfaceMounted Device (SMD) plastic package. 2. Features and benefits • Built-in bias resistors • Simplifies circuit design • Reduces component count • Reduces pick and place costs • Qualified according to AEC-Q101 and recommended for use in automotive applications 3. Applications • General purpose switching and amplification • Inverter and interface circuits • Circuit applications 4. Quick reference data Table 1.
