PDTD143EU, PDTD113EU Datasheet - nexperia

PDTD143EU, PDTD113EU, 50V NPN resistor-equipped transistors

PDTD1xxxU series 500 mA, 50 V NPN resistor-equipped transistors Rev.1 * 13 May 2014 Product data sheet 1.Product profile 1.1 General de.
NPN Resistor-Equipped Transistor (RET) family in a very small SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package.

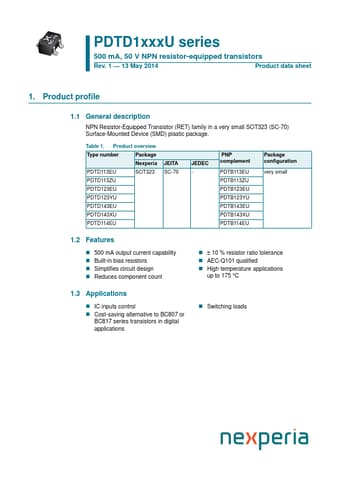

 Datasheet Preview Page 1

PDTD113EU-nexperia.pdf

This datasheet PDF includes multiple part numbers: PDTD143EU, PDTD113EU. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PDTD143EU, PDTD113EU

Manufacturer:

nexperia ↗

File Size:

2.89 MB

Description:

50V NPN resistor-equipped transistors

Note:

This datasheet PDF includes multiple part numbers: PDTD143EU, PDTD113EU.
Please refer to the document for exact specifications by model.

Features

* 500 mA output current capability
* Built-in bias resistors
* Simplifies circuit design
* Reduces component count
*  10 % resistor ratio tolerance
* AEC-Q101 qualified

Applications

* up to 175 °C 1.3 Applications
* IC inputs control
* Cost-saving alternative to BC807 or BC817 series transistors in digital applications
* Switching loads Nexperia PDTD1xxxU series 500 mA, 50 V NPN resistor-equipped transistors 1.4 Quick reference data Table 2. Symbol VCEO IO R1 R
