PMEG4010EXD 40V 1A Schottky barrier rectifier

PMEG4010EXD Description

PMEG4010EXD 40 V, 1 A Schottky barrier rectifier 21 January 2025 Product data sheet 1.General .
Planar Schottky barrier rectifier encapsulated in a CFP2-HP (SOD323HP) power flat lead SurfaceMounted Device (SMD) plastic package.

PMEG4010EXD Features

* Low forward voltage
* High power capability due to clip-bond package

PMEG4010EXD Applications

* Low voltage rectification
* High efficiency DC-to-DC conversion
* Freewheeling
* Reverse polarity protection
* OR-ing 4. Quick reference data Table 1. Quick reference data Symbol Parameter IF(AV) average forward current VR reverse voltage VF forwar

📥 Download Datasheet

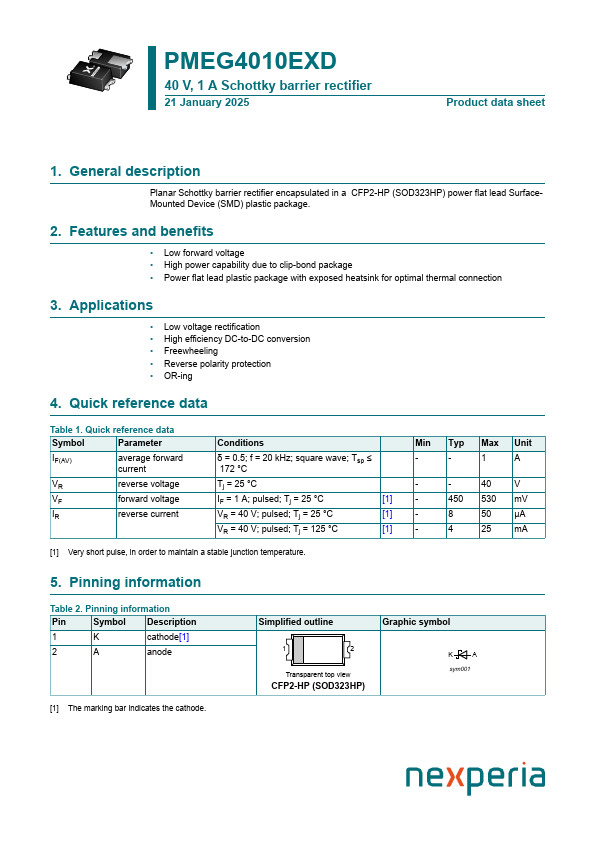

Preview of PMEG4010EXD PDF

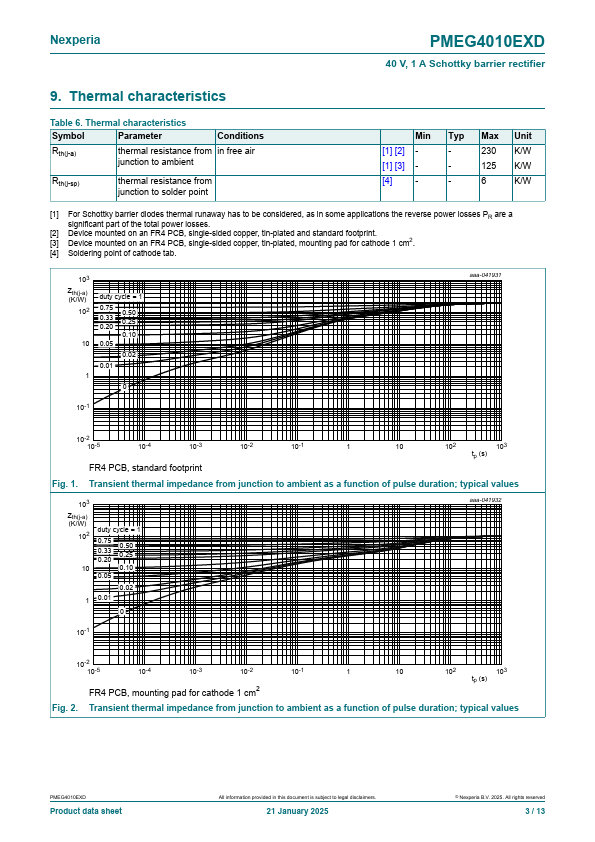

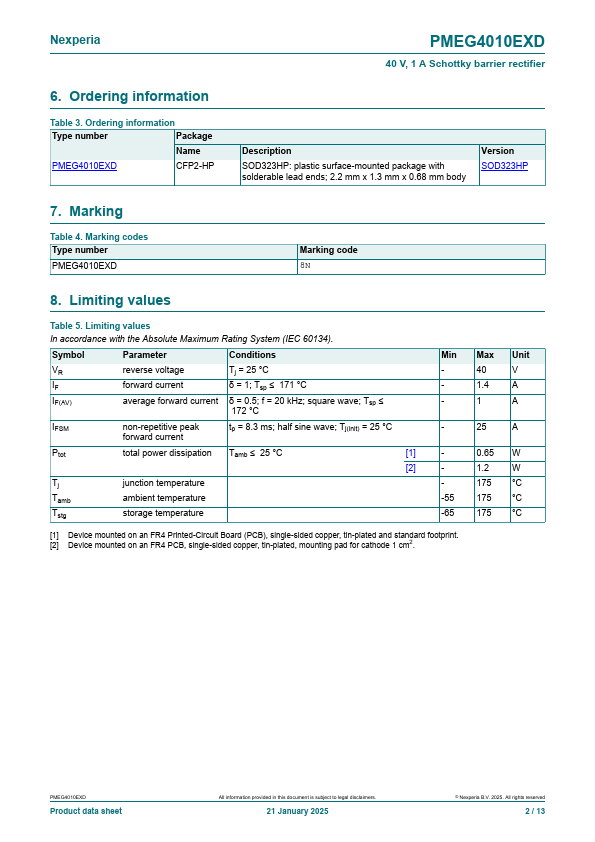

datasheet Preview Page 2 datasheet Preview Page 3
