PMPB07R6XN - 30V N-channel Trench MOSFET

Name: PMPB07R6XN
SKU: PMPB07R6XN-1583186

nexperia

📥 Download Datasheet

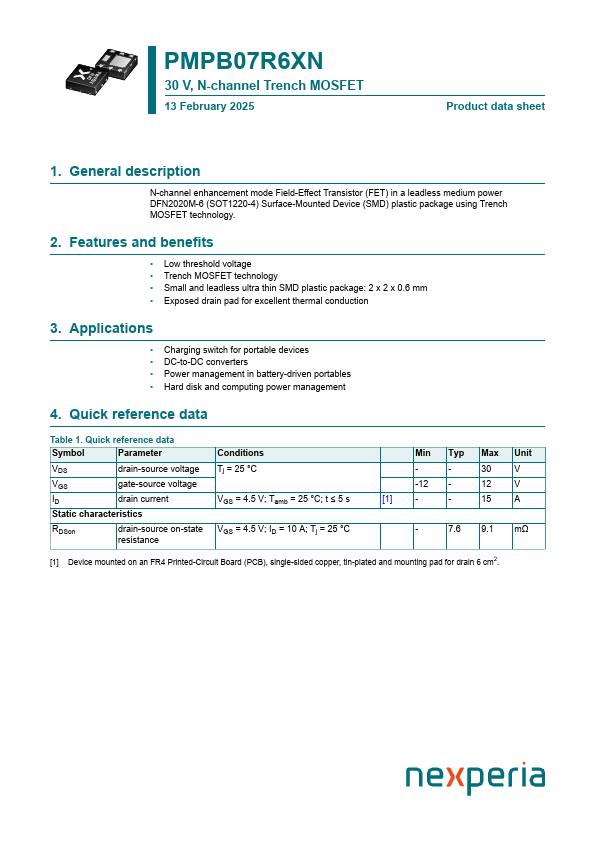

PMPB07R6XN Datasheet Preview — Preview of PMPB07R6XN PDF

Datasheet Details

Part number	PMPB07R6XN
Manufacturer	nexperia
File Size	326.90 KB
Description	30V N-channel Trench MOSFET
Datasheet	PMPB07R6XN-nexperia.pdf

PMPB07R6XN Product details

Description

N-channel enhancement mode Field-Effect Transistor (FET) in a leadless medium power DFN2020M-6 (SOT1220-4) Surface-Mounted Device (SMD) plastic package using Trench MOSFET technology.

Features

Low threshold voltage.
Trench MOSFET technology.
Small and leadless ultra thin SMD plastic package: 2 x 2 x 0.6 mm.
Exposed drain pad for excellent thermal conduction 3.
