PNE20010ER, 1A hyperfast recovery rectifier

PNE20010ER 200 V, 1 A hyperfast recovery rectifier 3 January 2019 Product data sheet 1.General .
High power density, hyperfast recovery rectifier with high-efficiency planar technology, encapsulated in a small and flat lead SOD123W Surface-Mounted.

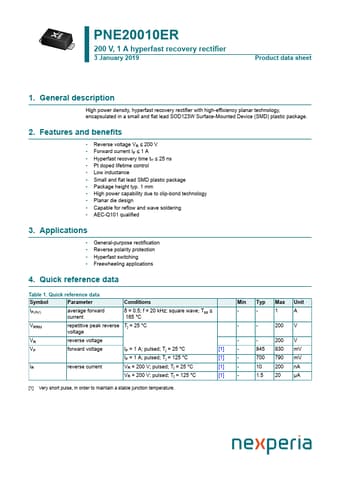

datasheet Preview Page 1 from Datasheet4u.com

PNE20010ER-nexperia.pdf

PNE20010ER Datasheet Preview — Preview of PNE20010ER PDF

Datasheet Details

Part number:

PNE20010ER

Manufacturer:

nexperia ↗

File Size:

239.39 KB

Description:

1A hyperfast recovery rectifier

Features

* Reverse voltage VR ≤ 200 V
* Forward current IF ≤ 1 A
* Hyperfast recovery time trr ≤ 25 ns
* Pt doped lifetime control
* Low inductance
* Small and flat lead SMD plastic package
* Package height typ. 1 mm
* High power capability due

Applications

* General-purpose rectification
* Reverse polarity protection
* Hyperfast switching
* Freewheeling applications 4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions IF(AV) average forward current δ = 0.5; f = 20 kHz; square wave; T
