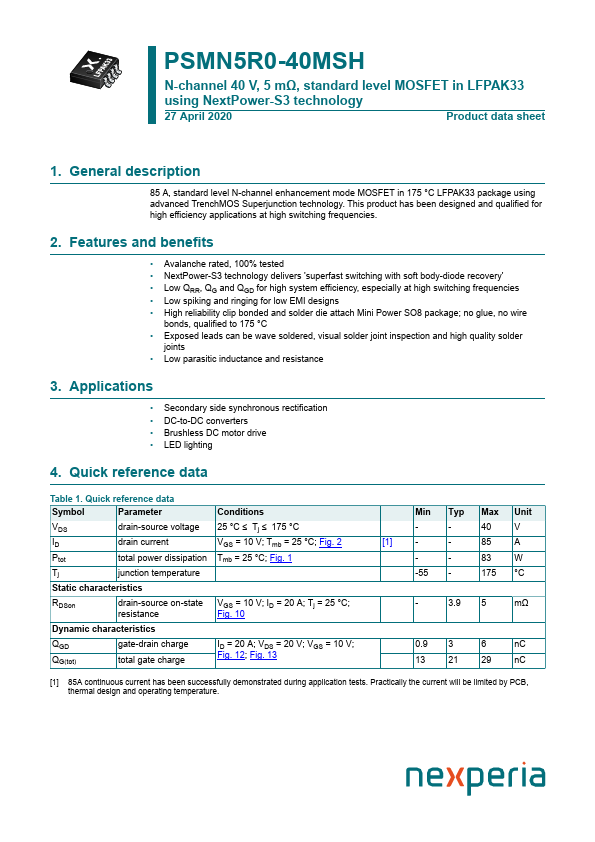

PSMN5R0-40MSH Datasheet Preview — Preview of PSMN5R0-40MSH PDF

datasheet Preview Page 2

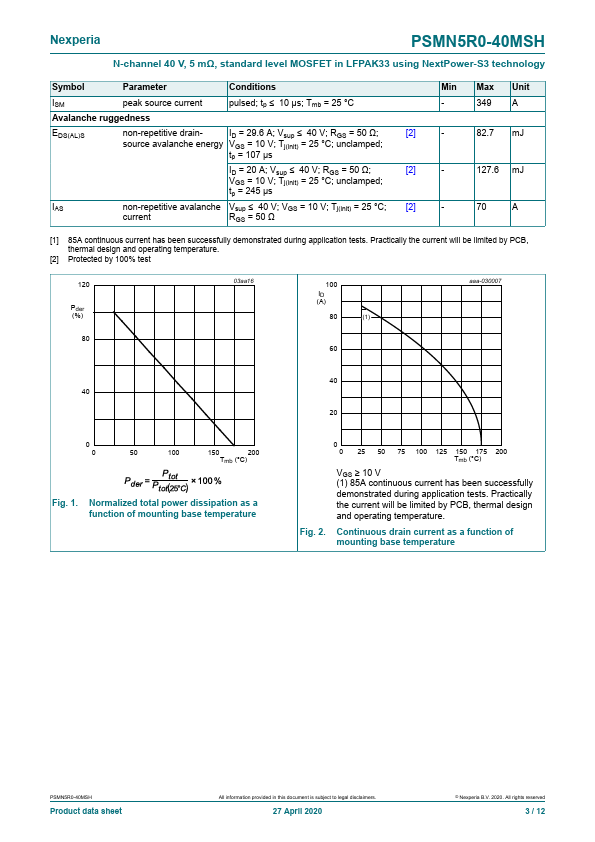

datasheet Preview Page 3

Datasheet Details

Part number	PSMN5R0-40MSH
Manufacturer	nexperia ↗
File Size	301.40 KB
Description	N-channel 40V MOSFET
Datasheet	PSMN5R0-40MSH-nexperia.pdf

PSMN5R0-40MSH Product details

Description

85 A, standard level N-channel enhancement mode MOSFET in 175 °C LFPAK33 package using advanced TrenchMOS Superjunction technology.

Features

Avalanche rated, 100% tested.
NextPower-S3 technology delivers 'superfast switching with soft body-diode recovery'.
Low QRR, QG and QGD for high system efficiency, especially at high switching frequencies.
Low spiking and ringing for low EMI designs.
High reliability clip bonded and solder die attach Mini Power SO8 package; no glue, no wire bonds, qualified to 175 °C.
Exposed leads can be wave soldered, visual solder joint inspection and hig.
