PTVS60VS1UR, PTVS3V3S1UR, 400W Transient Voltage Suppressor

PTVSxS1UR series 400 W Transient Voltage Suppressor Rev.3 * 10 January 2011 Product data sheet 1.Product profile 1.1 General .
400 W unidirectional Transient Voltage Suppressor (TVS) in a SOD123W small and flat lead low-profile Surface-Mounted Device (SMD) plastic package, des.

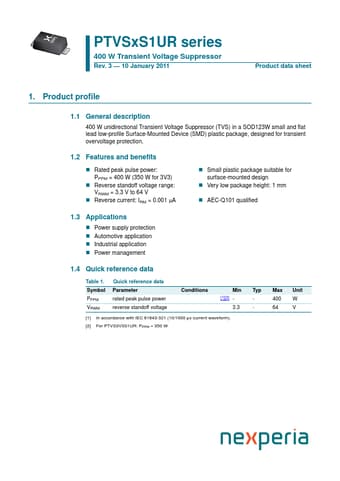

datasheet Preview Page 1 from Datasheet4u.com

PTVS3V3S1UR-nexperia.pdf

PTVS60VS1UR Datasheet Preview — This datasheet PDF includes multiple part numbers: PTVS60VS1UR, PTVS3V3S1UR. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PTVS60VS1UR, PTVS3V3S1UR

Manufacturer:

nexperia ↗

File Size:

656.56 KB

Description:

400W Transient Voltage Suppressor

Note:

This datasheet PDF includes multiple part numbers: PTVS60VS1UR, PTVS3V3S1UR.
Please refer to the document for exact specifications by model.

Features

* Rated peak pulse power: PPPM = 400 W (350 W for 3V3)
* Reverse standoff voltage range: VRWM = 3.3 V to 64 V
* Reverse current: IRM = 0.001 μA
* Small plastic package suitable for surface-mounted design
* Very low package height: 1 mm
* AEC-Q101 qual

Applications

* Power supply protection
* Automotive application
* Industrial application
* Power management 1.4 Quick reference data Table 1. Symbol PPPM VRWM Quick reference data Parameter rated peak pulse power reverse standoff voltage Conditions Min Typ Max Unit [1][2] -
