PTVS6V5P1UP-Q Datasheet, Suppressor, nexperia

PTVS6V5P1UP-Q Features

  • Suppressor
  • Rated peak pulse power: PPPM = 600 W
  • Reverse standoff voltage range: VRWM = 3.3 V to 64 V
  • Reverse current: IRM = 0.001 μA
  • Very low package height

PDF File Details

Part number:

PTVS6V5P1UP-Q

Manufacturer:

nexperia ↗

File Size:

218.07kb

Download:

📄 Datasheet

Description:

600w transient voltage suppressor. 600 W unidirectional Transient Voltage Suppressor (TVS) in a SOD128 small and flat lead SurfaceMounted Device (SMD) plastic package,

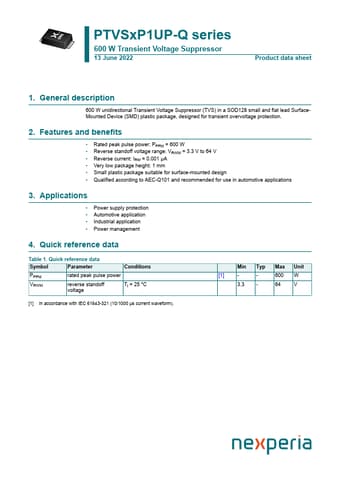

Datasheet Preview: PTVS6V5P1UP-Q 📥 Download PDF (218.07kb)
Page 2 of PTVS6V5P1UP-Q Page 3 of PTVS6V5P1UP-Q

PTVS6V5P1UP-Q Application

  • Applications 3. Applications
  • Power supply protection
  • Automotive application
  • Industrial application
  • Power ma
